Small shipboard foam filled marine fenders

  • DEYUAN

  • China (Mainland)

  • DEYUAN

  • Fender

  • nude packaging.

  • Depends on your quantity

Specifications


Marine fenders:
1.Suitable to any transports or boat.
2.Wear resistant
3.Unsinkable
4.Enhancing port ability



Marine fenders:

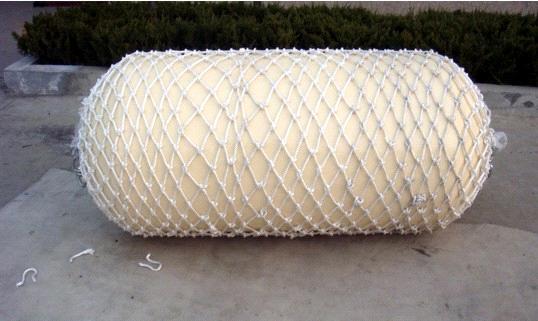

Small shipboard foam filled marine fenders:

With the general compression fender, solid foam filled polyurethane fender with floating performance,

The installation position is not subject to tidal influence.

Compared with pneumatic fenders, has better energy absorption performance, and low reaction performance

Compared with pneumatic fenders, does not require the use of check, inflatable, with maintenance-free.no explosion risk, with safety Product specifications according to the needs of manufacturing, in the rubber fender in the specifications of the largest

Advantages:

1.Lightweight and closed cell resilient foam core Tough.

2.Nylon filament reinforced polyurethane skin.

3.Various optional fittings.

4.Easy installation.

Characteristic:

1 With the general compression fender, solid foam filled polyurethane fender with floating performance,

2 Compared with pneumatic fenders, has better energy absorption performance, and low reaction performance

3 Compared with pneumatic fenders, does not require the use of check, inflatable, with maintenance-free;

4  no explosion risk, with safety

Range of use:

1.The marine terminal fender

2.Suitable for gravity and London Wharf , especially the large tidal range of the dock

3.Particularly applicable to the ship by ship fender, floating fender more adaptability

4.As the pier fender, protection of bridge piers,ships from damage.

The following performance parameters of the "standard" EVA foam filled fenders:

Size

Deflection 60%

Weight(±3%)

Reaction force(KN)

Enery absorption(KJ)

(KG)

300×500

43

5

7

400×800

54

7

17

500×1000

89

32

23

700×1500

129

24

85

1000×1500

190

62

175

1000×2000

298

80

240

1200×2000

335

110

350

1350×2500

460

173

550

1500×3000

615

263

770

1700×3000

678

330

1075

2000×3500

940

535

1530

2000×4000

1095

630

1980

2000×4500

1250

690

2500

2300×4000

1380

735

2885

2300×5500

1860

1133

3480

2500×4000

1455

980

3390

2500×5500

1960

1230

3985

3000×5000

2180

1755

5350

3000×6000

2455

1960

6680

3300×4500

1960

1760

5750

3300×6500

3075

2830

8400

3500×7000

3975

3162

10100
