China (Mainland)
DEYUAN MARINE
Marine Sewage Comminuting
CCS
0.3-15M3
1.0-1.5Mpa or as order
Standard Export Packing
20~30Days

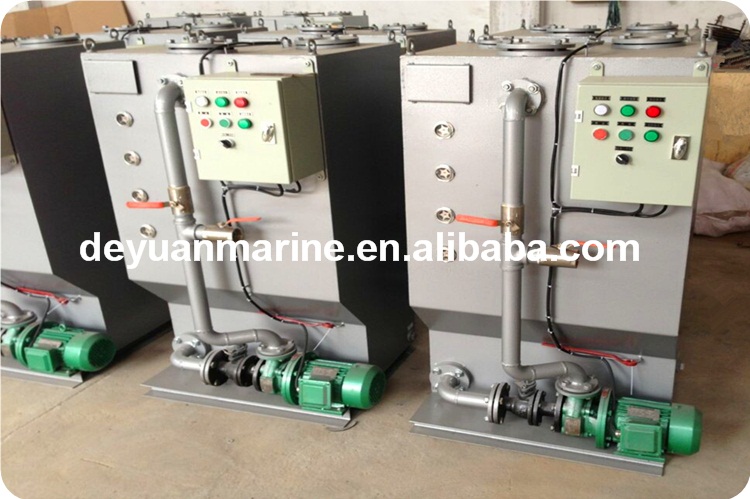

10M3 Marine Sewage Comminuting And Disinfecting Holding Tank
10M3 Marine Sewage Comminuting And Disinfecting Holding Tank
Application
This SWCH type Holding tank also can be a sewage comminuting and disinfecting system regulated by Annex IV of (MARPOL)73/78, for the temporary storage of sewage when the ship is less than 3 nautical miles from the nearest land, or transfer to a sewage treatment plant.
The Holding tank has the function of dosing disinfecting,sludge cutting,inner flushing and discharging the treated sludge to go overboard, open sea or shore connection.
Simple structure, easy operation of the Holding Tank, which has been obtained the Certificate from CCS Nanjing.
Principle Description
The Holding tank is used for storage of raw sewage or remaining solid sludge disposed by the treatment plant. When it stores raw sewage, a certain amount of chloride can be added into the sewage. When the sewage reaches specified level, the cutting pump is started to convert solid sludge into small particle sludge by circulating repeatedly. The sludge can be transported to the reception facilities with the shore connection or it can be discharged overboard when the ship navigates in the non-restricted areas.
10M3 Marine Sewage Comminuting And Disinfecting Holding Tank
Model | SWCH- | |||||||||||||
| 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 15.0 | |
Capacity(m⊃3;) | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 15.0 | |
Quality of Effluent | Colichin NOT MORE THAN 1000pcs/100ml,suspended solid shall not be found | |||||||||||||
Electricity | 380V,50HZ,3 phase | |||||||||||||
Power | 1.0kw | 1.5kw | ||||||||||||
Discharge pressure | 0.08MPa or as order | 0.1MPa or as order |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Holly
E-mail: sales6[at]deyuanmarine[dot]com
Skype: marinesales8
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Web: http://www.deyuanmarine.com
