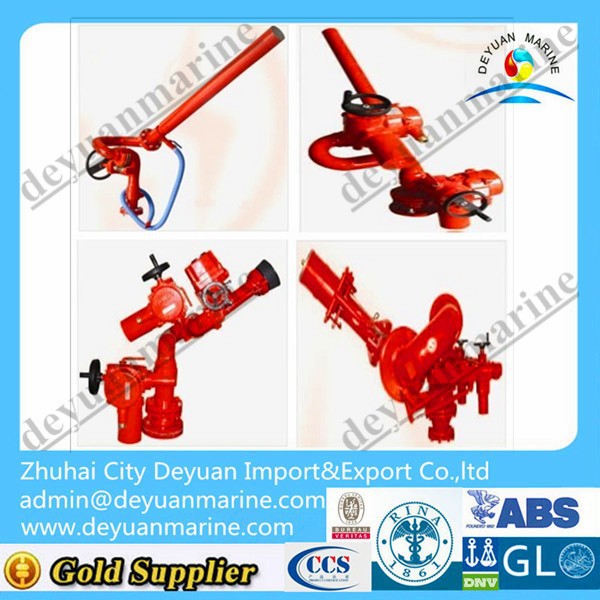

Fire Monitor
1.Effective capacity: 2000L/min; 2400L/min.
2.The max pressure: 16bar.
3. Inlet: Flange DN50 PN16; DN65 PN16.
4.Outlet: Screw thread.
5.Optional inlet Flange: DN80 PN16/ANSI2''/ANSI½''.
Fire monitor for fire fighting details:
Descriptions: Produced on requirement
Effective capacity: 6000L/min
The max pressure: 16bar
Inlet: Flange DN100 PN16
Outlet: Square flange
Optional inlet flange: DN150/ANSI4''
Rotation range:
Horizontal: 360° infinite
Vertical: +85°~ -75°
Weight: ~35Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
