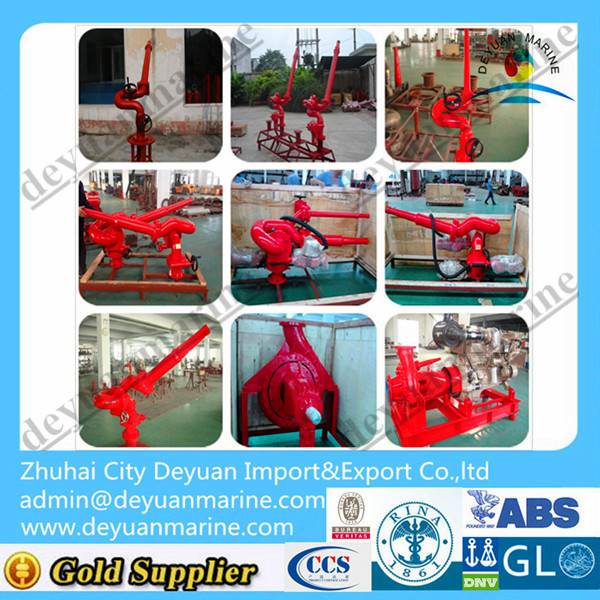

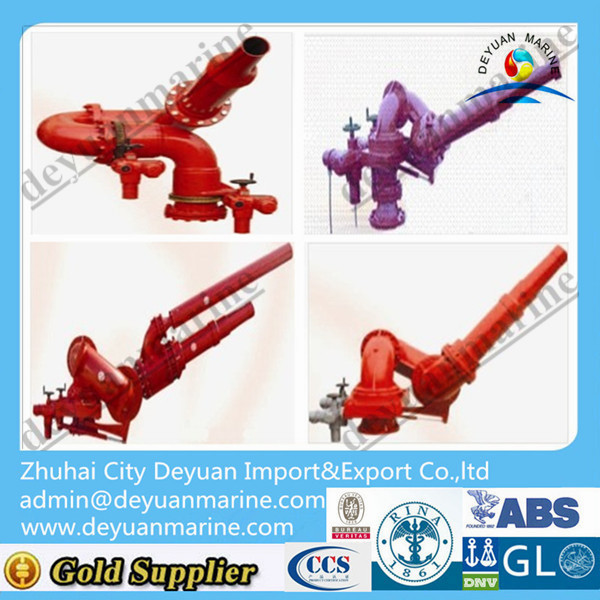

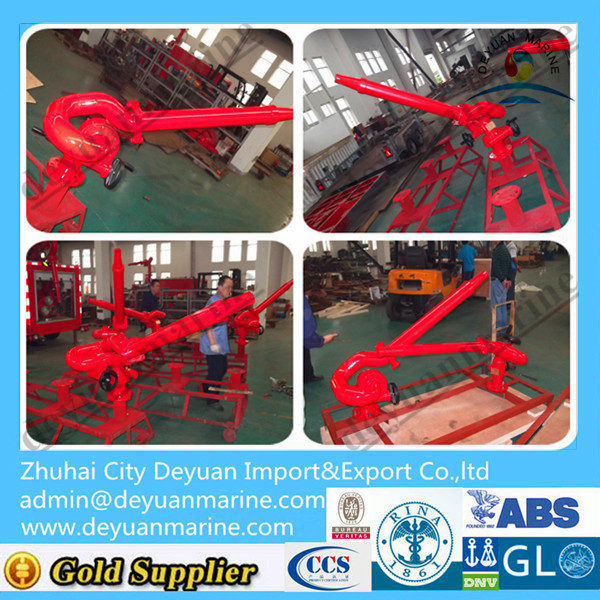

600M3/H Fire monitor for fifi system

Inquire Add to Basket

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • SS200EL

  • Stainless steel & carbon steel & aluminum alloy

  • 16bar

  • 26000L/MIN

  • manual operation

  • water &AFFF

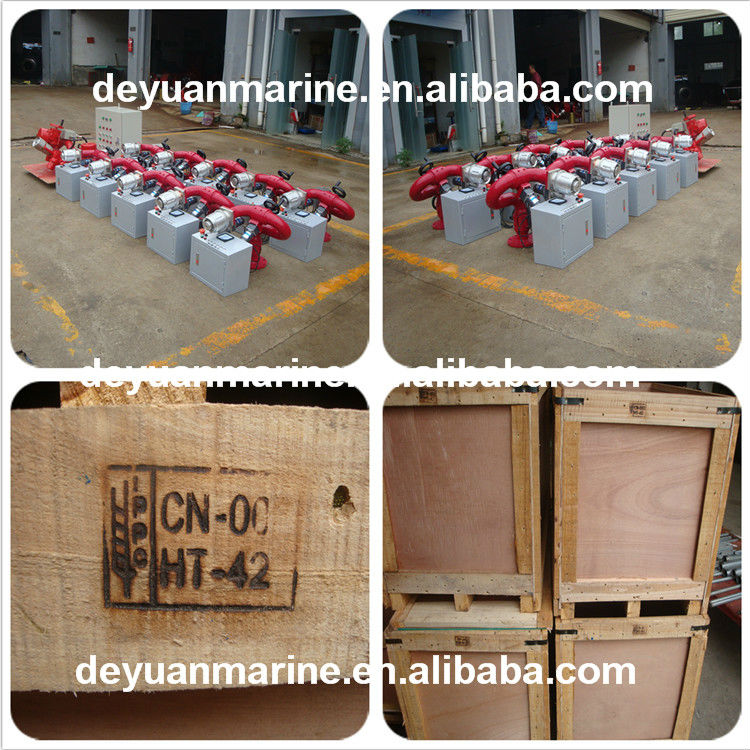

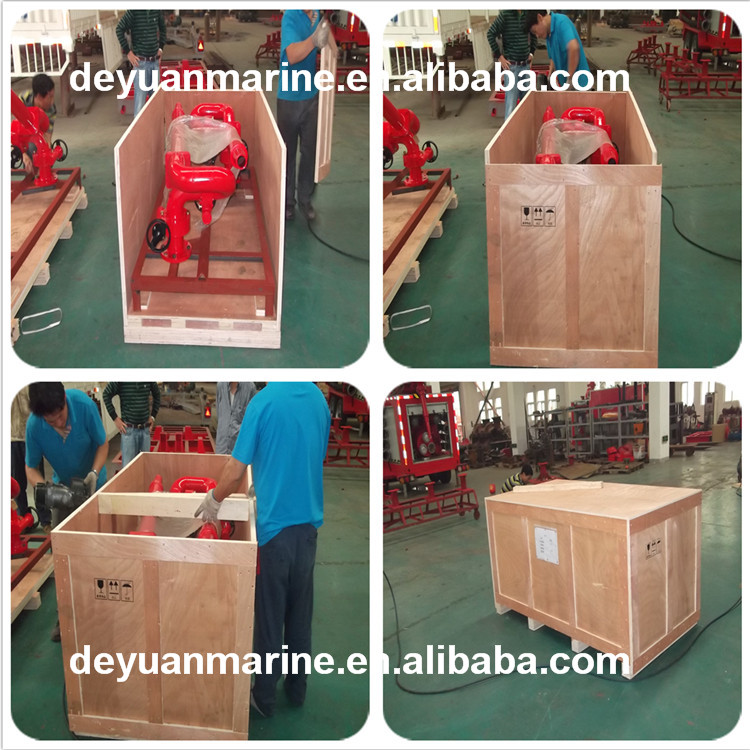

  • Wooden case

  • 10-30days

1)Type of fire monitor :Electric  double type fire monitor

2)Fire Monitor Capacity:26000L/MIN

3)Fire Monitor Model:SS200EL

4)Fire Monitor Material:stainless steel/carbon steel/Anti-corrosion aluminum alloy

5)Medium:Water &AFFF

6) Certificate:CCS,ABS,DNV,RINA,LR etc

*Fire Monitor capacity: 26000L/min

*fire monitor  max pressure:  16bar

*Inlet:   Flange DN200 PN16

*Outlet: flange connection

Optional inlet flange: DN250 / ANSI8''

Rotation range:

Horizontal:  340°

Vertical:   +75°~ -45°

Weight:  ~850Kg

Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
