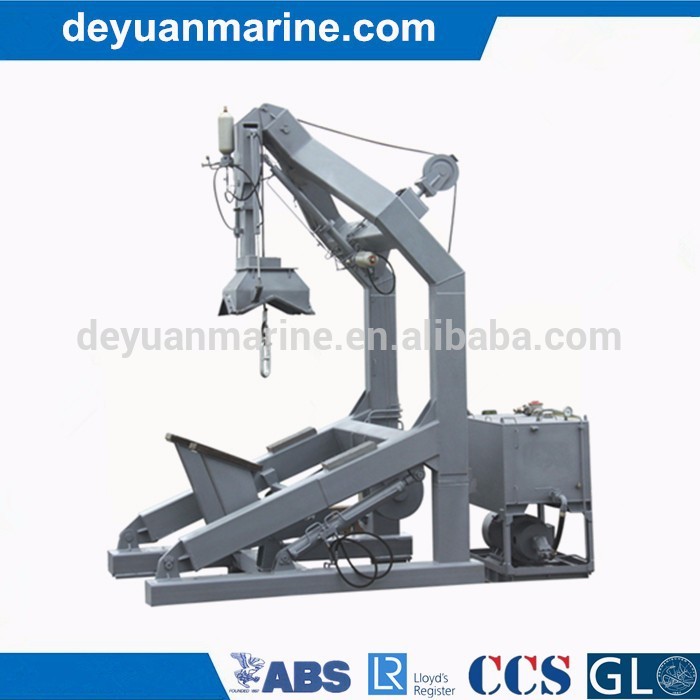

A Type Davit For Lifeboat
A Type Davit For Lifeboat
The davit is manufactured and test under the approval of Classification Society KR in compliance with the requirements of the
MSC.47 (66)-Amendments to SOLAS 1974 & MSC.48 (66)& MSC.272(85) -LSA. 1-2 The davit to be designed for embarkation
when the boat in stowed position. The boat may be lowered without stopping in a continuous movement at a minimum time.
1:Product standard:MSC,MSC.81(70),MSC.226(82).
2:Certificate:CCS,EC,BV,ABS,RINA.
3:Type:Gravity Luffing Arm davit.
4:Davit load: Max. 52 KN.
5: Winch load: 42KN.
Type | Max working load(KN) | Hoisting load (KN) | Max width (mm) | Max height (mm) | Total weight (kg) |
25KN | 25 | 14.5 | 2590 | 5100 | 2820 |
40KN | 40 | 17 | 2800 | 5200 | 3492 |
50KN | 50 | 30.5 | 2800 | 5200 | 4300 |
LB50-1 | 50 | 35 | 2550 | 6500 | 3200 |
70KN | 70 | 35 | 3150 | 6200 | 4730 |
LB85-1 | 85 | 38 | 3430 | 6600 | 5025 |
120KN | 120 | 60 | 4150 | 8200 | 6500 |
LB170-1 | 170 | 70 | 4430 | 9090 | 9438 |
