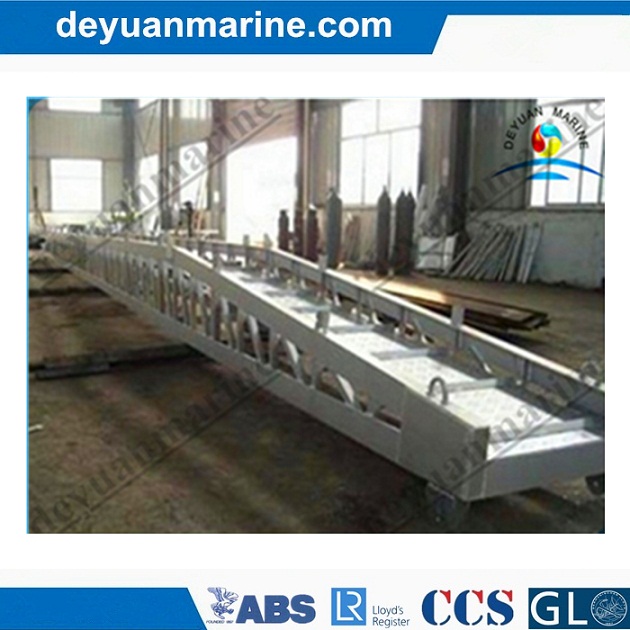

Aluminium Gangway Ladder/Steel Marine Gangway Ladder

Inquire Add to Basket

  • Aluminium Alloy and Steel

  • Deyuan

  • China

  • 8 to 15mete

  • ABS, GL, DNV, BV, CCS

Steel Marine Gangway Ladder:
Features:
*Materials: Aluminium alloy and steel
*with spray-painted primer for steel or anode oxidation-treatment for aluminium alloy material
*Available in 8 to 15meter standard length
*Option handrail type and height

China Deyuan Marine Fitting Co., Ltd is a leading supplier of marine outfitting equipment, such as marine steel doors, marine aluminum door, marine windows, marine hatch cover, marine pilot rope ladder, embarkation rope ladder, gangway ladder, bulwark ladder etc.
This product is to be used for embarkation or disembarkation of personnel when various types of ships are mooring alongside a wharf.

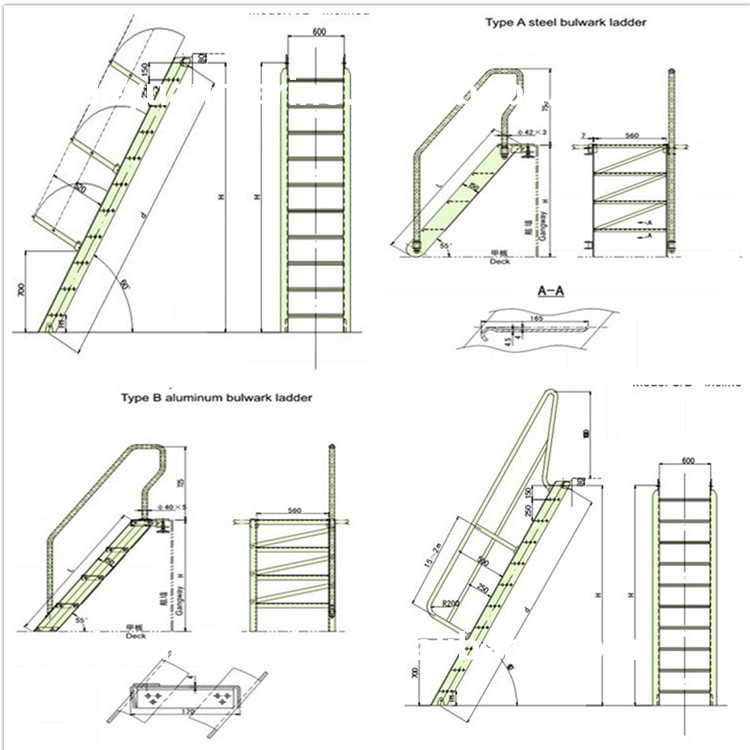

Model Main Size Weight(kg)
L L1 L2 l H h Model A Model B
A(B) 8 8000 4000 4000 3200 350 180 182 205
A(B)10 10000 5000 5000 4830 500 250 221 244
A(B)12.5 12500 6250 6250 7230 550 300 296 319
A(B)15 15000 7500 7500 7230 750 500 362 388

Aluminium Gangway Ladder/Steel Marine Gangway Ladder
Aluminium Gangway Ladder/Steel Marine Gangway Ladder
Aluminium Gangway Ladder/Steel Marine Gangway Ladder
