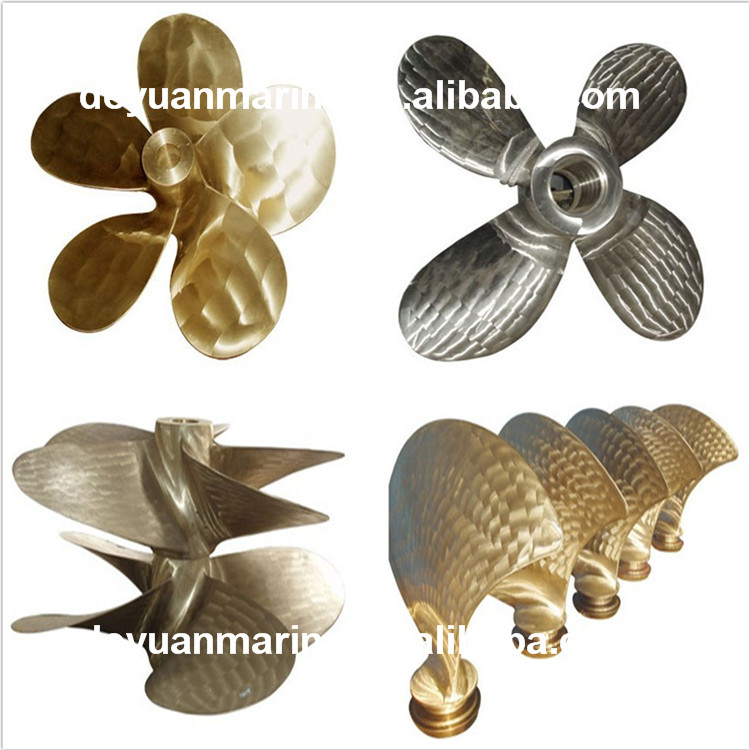

Bronze Marine controllable pitch propeller

Availability:
  • DEYUAN



1.Material:Bronze.
2.Diameter:6.7M.
3.pitch setting mechanism:
type A:OD-box on a shaft.
type B:Gear mounted OD-BOX .



Marine controllable pitch propeller

For inland vessels, offshore mixed ships, working boats, fishing boats, pelagic vessels and boats, pelagic vessels and war ship.

NCP series CPP are widely used as the main propulsion devices in inland vessels, offshore mixed ships,

working boats, fishing boats, pelagic vessels and war ships.



Technical characteristics:

High reliability and supportability; FEM analysis to key parts

Low working oil pressure, good sealing property and friendly to environment

Shaft line-alignment designing and vibration calculation

Hydrodynamic design with high propulsive efficiency

Simple and easy to operate and maintain.



Technical parameter

Model

Max.propelloer diameter  (mm)

Max.propeller speed (rpm)

Torque transmission capacity (kW/rpm)

Thrust (t)

NCP39

1670

550

1.95

12.2

NCP43

1845

530

2.6

15.5

NCP46

1980

500

3.44

20.5

NCP52

2250

450

4.3

24

NCP56

2400

390

5.5

28

NCP60

2600

390

6.76

33

NCP68

2950

280

9.5

42

NCP76

3300

230

13.6

50

NCP85

3700

230

19.7

62

NCP96

4200

230

27.54

75

NCP107

4600

230

38.6

94

NCP120

5200

230

54.2

108

NCP135

5900

220

78.5

124

NCP145

6250

200

110.2

138

NCP156

6700

200

160.5

150
