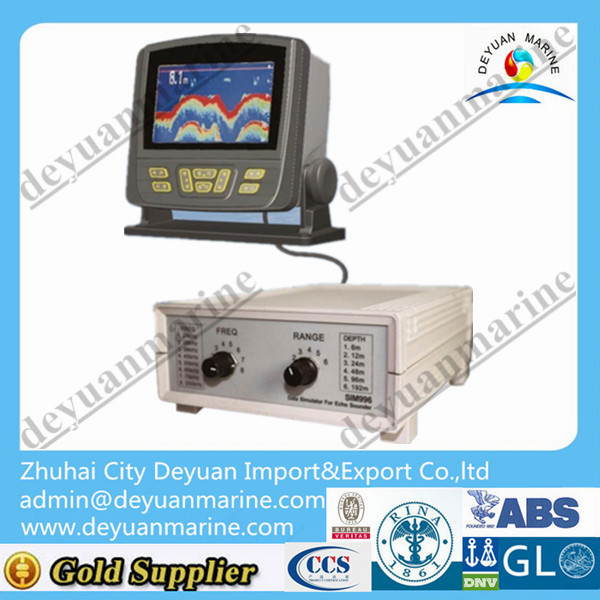

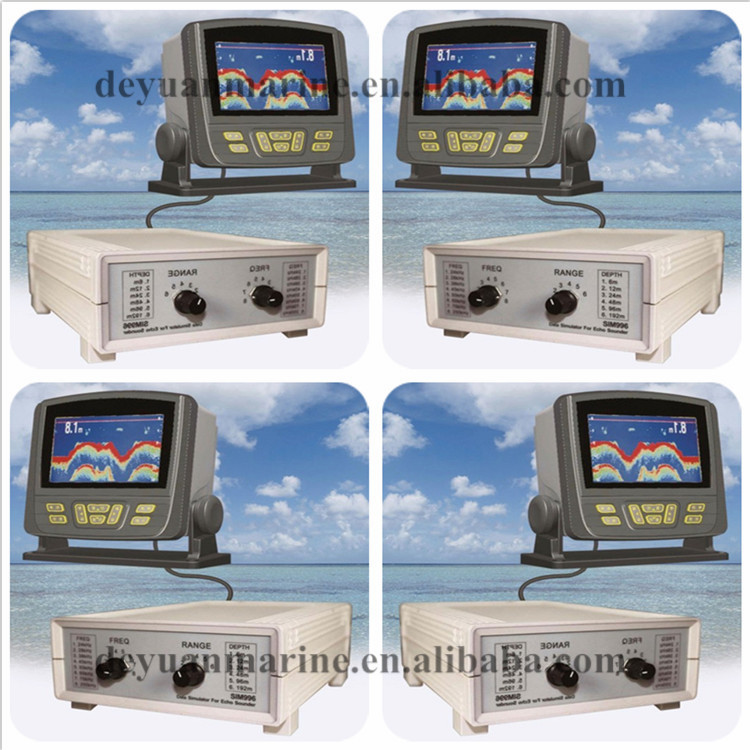

Data Simulator For Echo Sounder

Data Simulator For Echo Sounder

Introduction:

Data Simulator is a precision instrument designed for generating the  reply echo pulse for echo sounders and fish finders.

Theory:

 Data Simulator receives the incoming pulse parameters from echo sounder/fish finder and generates echo pulse to simulate the bottom or fish information and then sends the information back.



Data Simulator For Echo Sounder
Item	Specification
Measurement	160X200X75mm
weight	0.6kg
Power supply	DC8V-25V
consumption	<1.2W
Emission Freq	24kHz,28kHz,38kHz,45kHz,50kHz,60kHz,75kHz,200kHz
Depth options	6m,12m,24m,48m,96m,192m
Temperature	0-50°C
Humidity	10%-90%relative
Storage	-20-70°C
protection	IPX2
