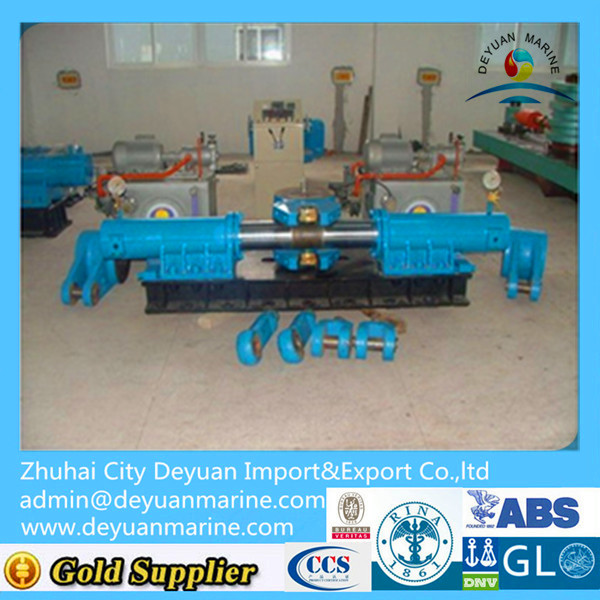

Deyuan Marine
Marin advantages:
1.Electro-hydraulic control.
2.Compact design.
3.Suitable for normal rudder blades.
4.Pumps with variable displacement or constant delivery.
5.One-piece tiller for standard or keyless fit of rudder stock.
6.pump units mounted on and completely piped with the cylinders.
(kn.m) Nominal Torque | Turning Angle (°) | Turning time(s) | Rated power (kw) | hydraulic steering gear Dimension (mm) | |||||
A | B | C | D | F | G | ||||
DY63 | 35 | 28s/65° | 5.5 | 2470 | 2320 | 505 | 350 | 380 | 694.5 |
DY100 | 35 | 28s/65° | 7.5 | 2718 | 2500 | 505 | 400 | 420 | 704.5 |
DY160 | 35 | 28s/65° | 11 | 2996 | 2740 | 505 | 450 | 420 | 704.5 |
DY200 | 35 | 28s/65° | 15 | 3304 | 3020 | 505 | 500 | 550 | 726.5 |
DY250 | 35 | 28s/65° | 15 | 3630 | 3160 | 505 | 550 | 550 | 726.5 |
DY320 | 35 | 28s/65° | 18.5 | 3938 | 3400 | 505 | 600 | 550 | 726.5 |
DY400 | 35 | 28s/65° | 18.5 | 3914 | 3600 | 560 | 570 | 600 | 950 |
