Fork type hydraulic steering gear

  • Deyuan Marine

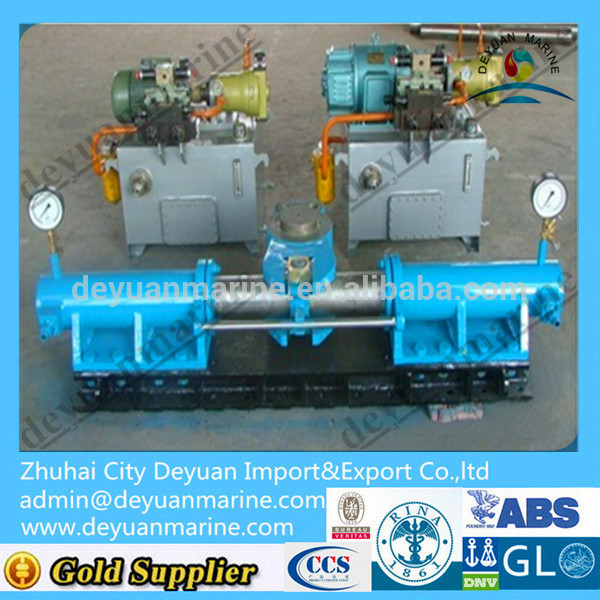

Fork type hydraulic steering gear

Marin advantages:

1.Electro-hydraulic control.

2.Compact design.

3.Suitable for normal rudder blades.

4.Pumps with variable displacement or constant delivery.

5.One-piece tiller for standard or keyless fit of rudder stock.

6.pump units mounted on and completely piped with the cylinders.



fork type hydraulic steering gear

(1)Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships,

Dredgers and any other vessels that need more steering torque



(2)Main Tech:

Max working torque:              15 KN.M — 250 KN.M

Max. mech. rudder angle:       ± 45 degree

Time of rudder movement:     ≤28 S

Rudder stock Diameter:          300mm — 900 mm

Working pressure:                  13 Mpa — 20 Mpa



(3)Design pressure:                    16 Mpa — 24 Mpa

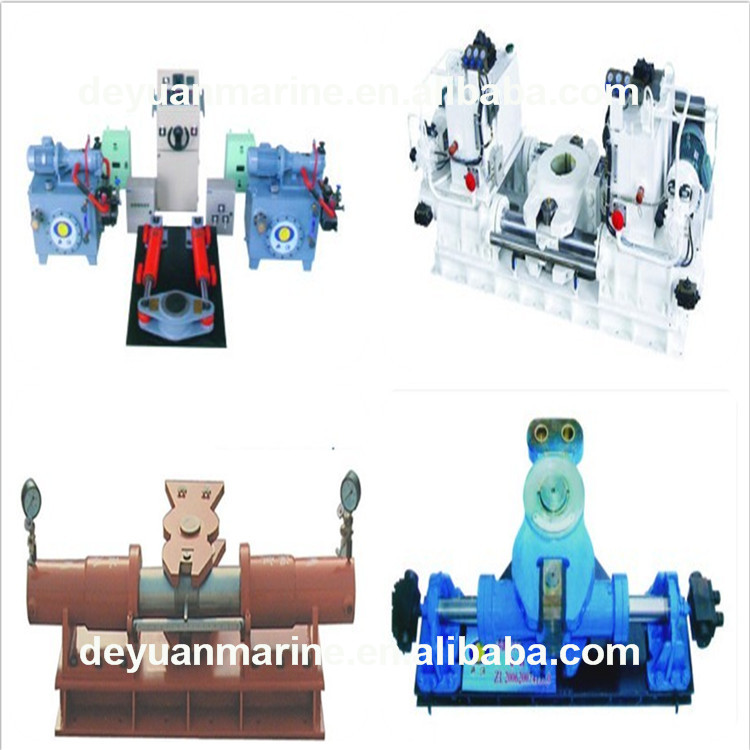

Marine steering gear with hydraulic cylinders

Electro-Hydraulic power station with oil pumps

Oil tanks

Start motors

On requests, the full range of  parts will be delivered.



(kn.m)

Nominal Torque

Turning

Angle

(°)

(s)

Turning time

(Mpa)

Max working oil pressure

Gear pump/motor

(mm)

rudder tiller radius

(Mm)

Diameter

 of radius

Type

No

Output

(kw)

10

±35

≤28/20

6.5

CBN-316

2

1.1

240

75-130

16

±35

≤28/20

10.2

CBN-316

2

1.1

240

75-130

20

±35

≤28/20

12

CBN-320

2

2.2

240

75-130

25

±35

≤28/20

10.9

CBN-320

2

2.2

290

75-150

30

±35

≤28/20

9.8

CBN-320

2

3

290

75-150
