Fork-Type Hydraulic Steering Gear (Single Rudder)

Inquire Add to Basket

  • DY778922

  • CCS

  • CCS, BV, GL...

  • Iron and Steel

  • Deyuan

  • China

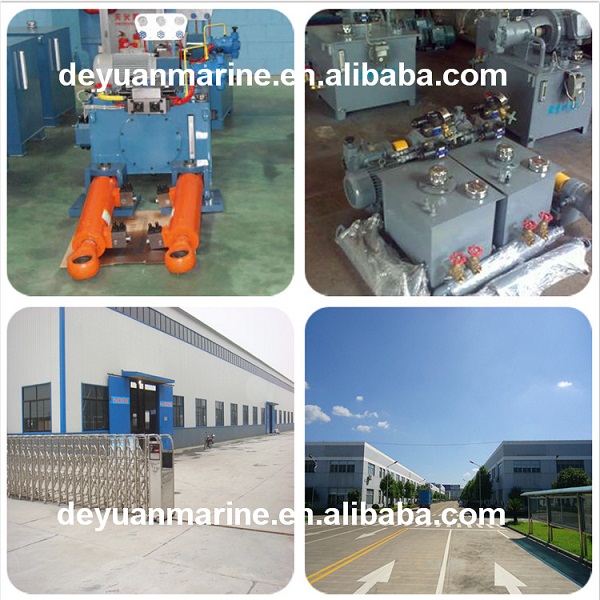

Fork-Type Hydraulic Steering Gear (Single Rudder)/marine steering gear


1)Suitable for:
Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that need more steering torque.

(2)Main Tech:
Max working torque: 15 KN. M - 250 KN. M
Max. Mech. Rudder angle: ± 45 degree
Time of rudder movement: ≤ 28 S
Rudder stock Diameter: 300mm - 900 mm
Working pressure: 13 Mpa - 20 Mpa
Design pressure: 16 Mpa - 24 Mpa

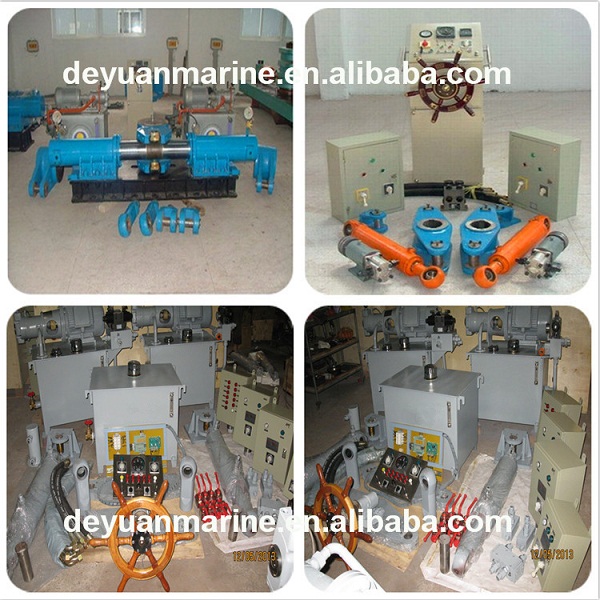

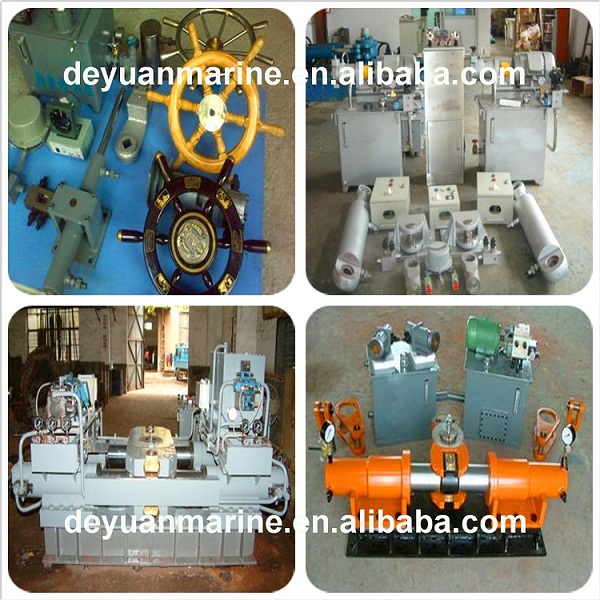

(3)Scope of delivery:
Marine steering gear with hydraulic cylinders
Electro-Hydraulic power station with oil pumps
Oil tanks
Start motors
On requests, the full range of parts will be delivered.
(kn.m)
Nominal Torque		 Turning
Angle
(°)		 Turning time(s) Rated power
(kw)		 Dimension (mm)
A B C D F G
DY63 35 28s/65° 5.5 2470 2320 505 350 380 694.5
DY100 35 28s/65° 7.5 2718 2500 505 400 420 704.5
DY160 35 28s/65° 11 2996 2740 505 450 420 704.5
DY200 35 28s/65° 15 3304 3020 505 500 550 726.5
DY250 35 28s/65° 15 3630 3160 505 550 550 726.5
DY320 35 28s/65° 18.5 3938 3400 505 600 550 726.5
DY400 35 28s/65° 18.5 3914 3600 560 570 600 950
DY450 35 28s/65° 18.5 4000 3600 560 570 600 950
DY500 35 28s/65° 18.5 4000 3600 560 570 600 950
