Fire Foam Monitor (SS150)

  • Deyuan Marine

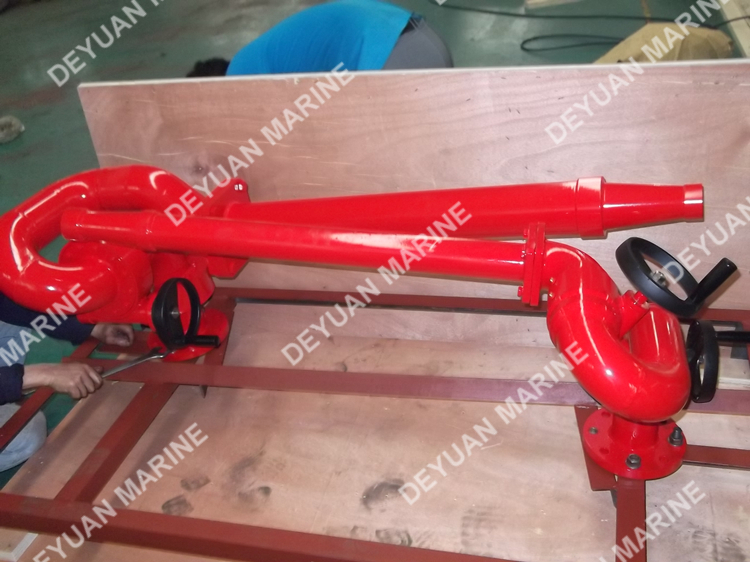

Fire Foam Monitor (SS150)




Fire Foam Monitor (SS150)

1.Effective capacity:   18000L/min.

2.The max pressure:    16bar.

3.Inlet:   Flange DN150 PN16.

4.Outlet:   Flange connection.


Fire Foam Monitor (SS150)

SS150 Standard Design Parameters      SS150EL/F; SS150DEL/F

China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,

marine fire pump,foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,

fire extinguishing system,Pls contact us for more specific details

Descriptions:    Produced on requirement

Effective capacity:   18000L/min

The max pressure:    16bar

Inlet:   Flange DN150 PN16

Outlet:   Flange connection

Optional inlet : DN200 / ANSI6''

Rotation range:

Horizontal:  340°

Vertical:   +75°~ -45°

Weight:  ~225Kg

Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
