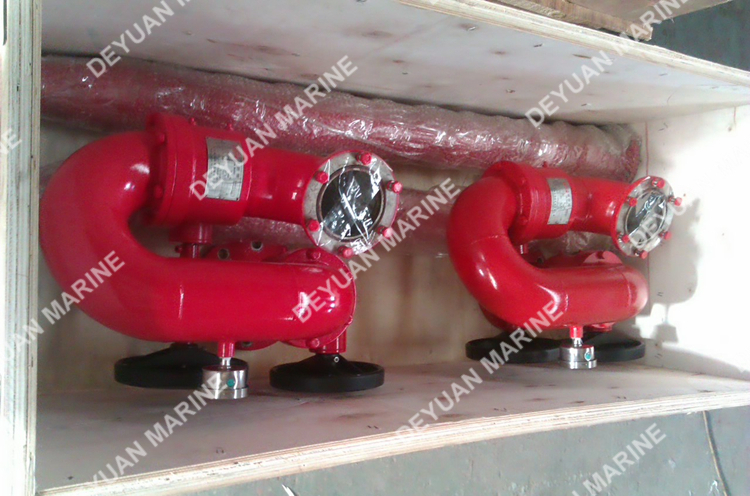

Fire Monitor For Fire Fighting (SS200EL)

Fire Monitor For Fire Fighting (SS200EL)



Fire Monitor For Fire Fighting (SS200EL)

1.Effective capacity:   26000L/min.

2.The max pressure:  16bar.

3.Inlet:   Flange DN200 PN16 .

4.Outlet:   Square flange.

Fire Monitor For Fire Fighting (SS200EL)

China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,marine fire pump,

foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,fire extinguishing system,

Pls contact us for more specific details.

Descriptions:    Produced on requirement

Effective capacity:   26000L/min

The max pressure:  16bar

Inlet:   Flange DN200 PN16

Outlet:   Square flange

Optional inlet : DN250 / ANSI8''

Rotation range:

Horizontal:  340°

Vertical:   +75°~ -45°

Weight:  ~750Kg

Materials:

Body:  Anti-corrosion / Aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy/ Aluminum alloy

Flange:  Anti-corrosion / Aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
