Guangdong, China (Mainland)
DEYUAN MARINE
SS65EL
stainless steel &carbon steel& aluminum alloy
16bar
2400L/MIN
manual operation
water &AFFF
wooden case
10-30days

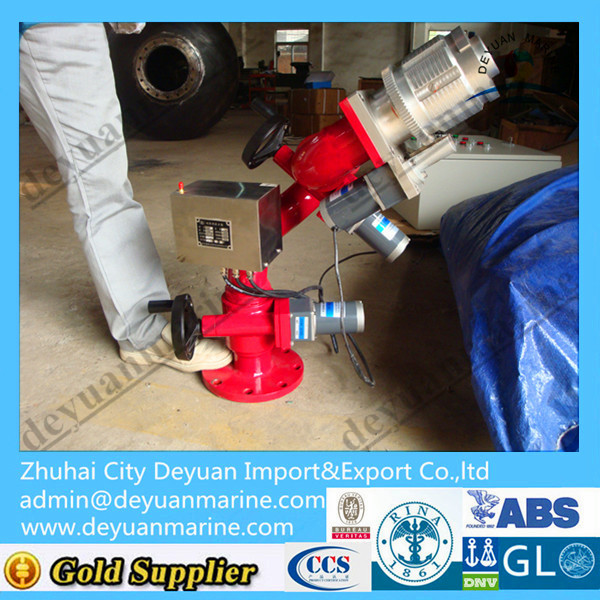

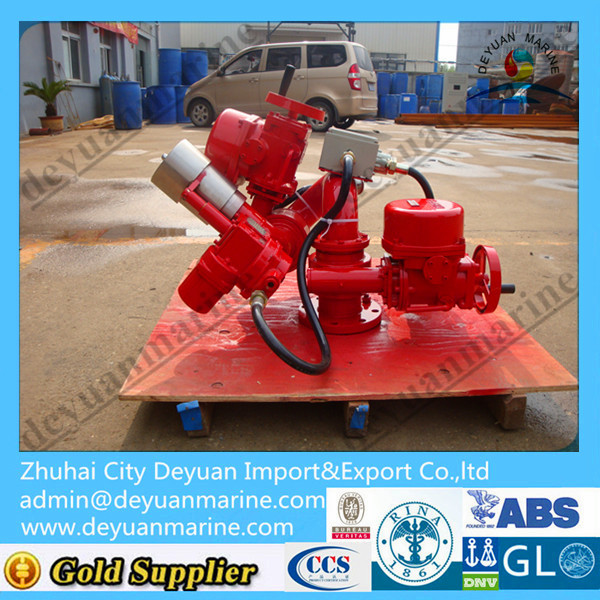

1)Type of fire monitor :manual fire fighting monitor/water fire monitor/foam fire monitor
2)Fire Monitor Capacity:2400L/MIN
3)Fire Monitor Model:SS65EL
4)Fire Monitor Material:stainless steel/carbon steel/Anti-corrosion aluminum alloy
5)Medium:Water &AFFF
*Fire Monitor capacity: 2400L/min
*fire monitor max pressure: 16bar
*Inlet: Flange DN65 PN16
*Outlet: 2'' screw thread
Optional inlet flange: DN80 PN16 / ANSI2½''/ANSI3''
Rotation range:
Horizontal: 340°
Vertical: +90°~ -75°
Weight: ~60Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
