Guangdong, China (Mainland)
DEYUAN MARINE
18000L/min
16bar
Flange DN150 PN16
Flange connection
~225Kg
Deyuan
Fire foam/water monitor
CCS ABS etc
High
Exported packing
wooden case

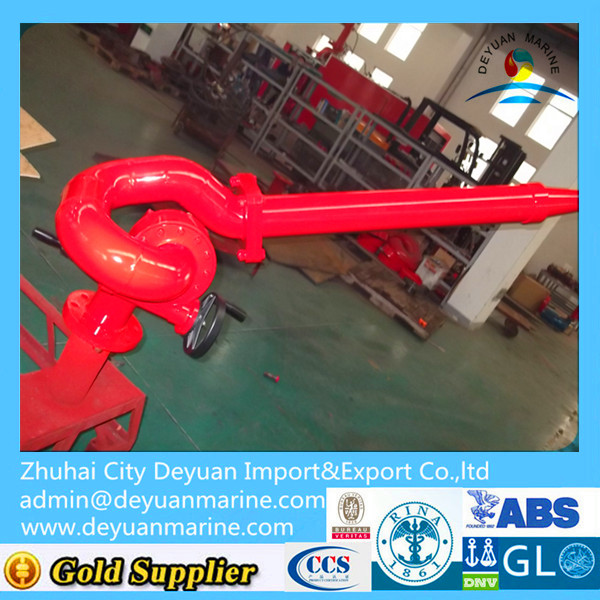

Fire foam monitor(ss150) / Fire water monitor for fifi system
1.Effective capacity: 18000L/min.
2.The max pressure: 16bar.
3.Inlet: Flange DN150 PN16.
4.Outlet: Flange connection.
Fire foam monitor(ss150)
SS150 Standard Design Parameters SS150EL/F; SS150DEL/F
Descriptions: Produced on requirement
Effective capacity: 18000L/min
The max pressure: 16bar
Inlet: Flange DN150 PN16
Outlet: Flange connection
Optional inlet : DN200 / ANSI6''
Rotation range:
Horizontal: 340°
Vertical: +75°~ -45°
Weight: ~225Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
Fire foam monitor(ss150) / Fire water monitor for fifi system
1.Effective capacity: 18000L/min.
2.The max pressure: 16bar.
3.Inlet: Flange DN150 PN16.
4.Outlet: Flange connection.
Fire foam monitor(ss150)
SS150 Standard Design Parameters SS150EL/F; SS150DEL/F
Descriptions: Produced on requirement
Effective capacity: 18000L/min
The max pressure: 16bar
Inlet: Flange DN150 PN16
Outlet: Flange connection
Optional inlet : DN200 / ANSI6''
Rotation range:
Horizontal: 340°
Vertical: +75°~ -45°
Weight: ~225Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
