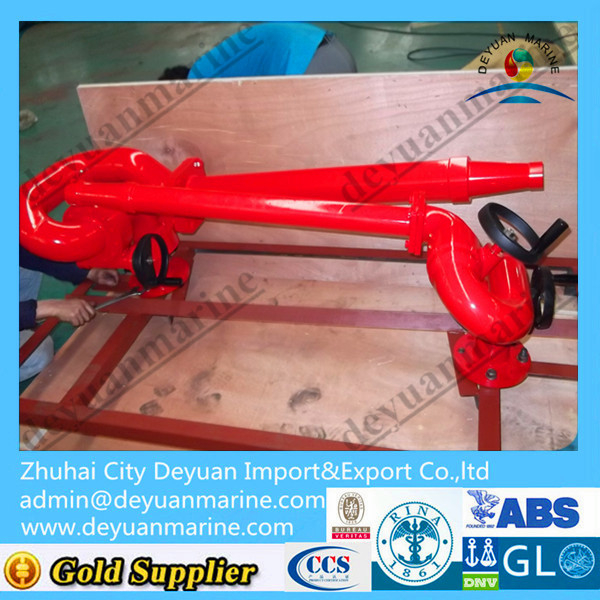

Fire monitor for ship fire fighting

Inquire Add to Basket

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • Fire monitor

  • 32000L/min

  • 16bar

  • Flange DN250 PN16

  • Flange connection

  • ~550Kg

  • Wooden case

  • 10 - 30days

1.Effective capacity:   32000L/min.

2.The max pressure:    16bar.

3.Inlet:   Flange DN250 PN16.

4.Outlet:   Flange connection

Fire monitor(SS250EL)

SS250EL Standard Design Parameters      SS250EL/F

Descriptions:    Produced on requirement

Effective capacity:   32000L/min

The max pressure:    16bar

Inlet:   Flange DN250 PN16

Outlet:   Flange connection

Optional inlet : Flange DN300 / ANSI10''

Rotation range:

Horizontal:  340°

Vertical:   +75°~ -45°

Weight:  ~550Kg

Materials:

Body:  Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:  Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position .
