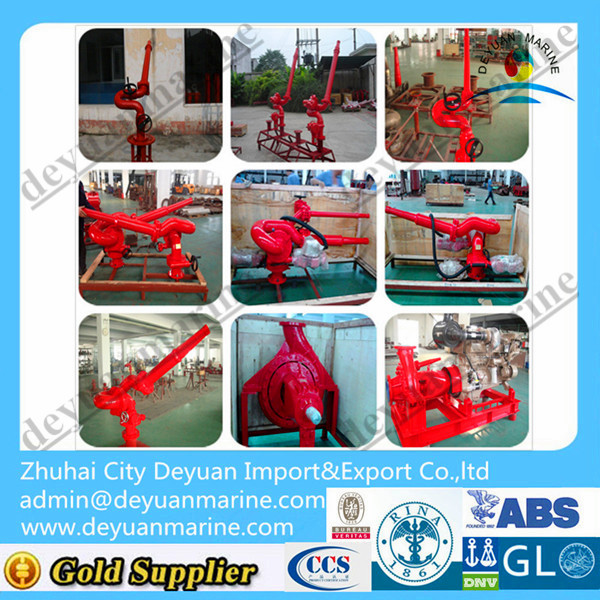

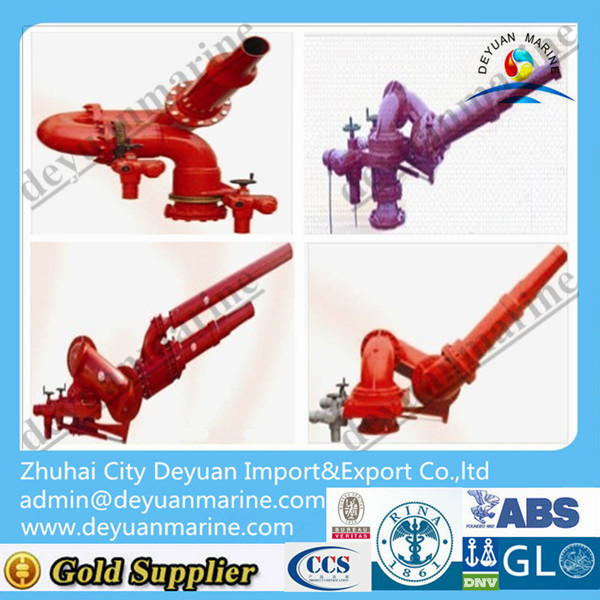

Fire water monitor with ABS,BV for fifi system

Inquire Add to Basket

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • PSKD80

  • Stainless steel

  • red

  • 4000L/MIN

  • manual operation

  • water &AFFF

  • wooden case

  • 10-30days

1)Type of fire monitor available: manual fire monitor/water fire monitor

2)Fire Monitor Capacity:4000L/MIN

3)Fire Monitor Model:PSKD80

4)Fire Monitor Material:stainless steel/carbon steel/Anti-corrosion aluminum alloy

5)Medium:Water &AFFF

*Effective capacity:   4000L/min

*The max pressure:    16bar

*Inlet:   Flange DN100 PN16

*Outlet:   Square flange

Optional inlet flange: DN150/ANSI4''

*Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:   Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position

Rotation range:

Horizontal:  360° infinite

Vertical:   +85°~ -75°

Weight:  ~165kg
