High Quality!!Handle Operation Fire Fighting Monitor

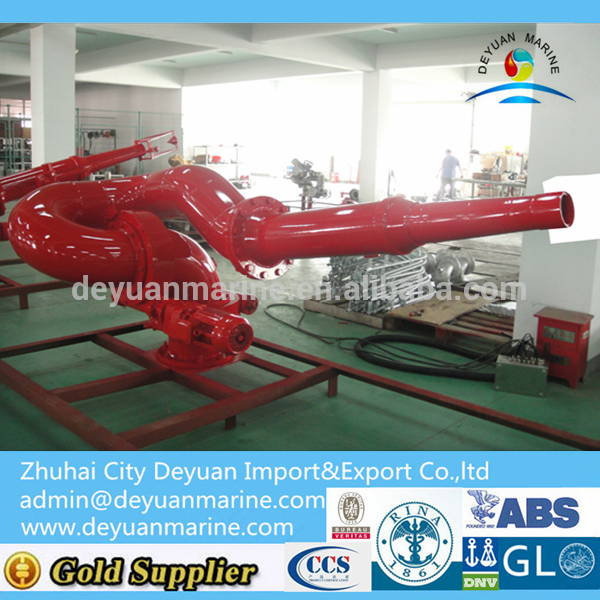

Manual Fire Monitor (SS150)



Manual Fire Monitor (SS150)

1.Effective capacity:   1800L/min.

2.The max pressure:    16bar.

3.Inlet:   Flange DN150 PN16 .

4.Outlet:   Flange connection.

5.Optional inlet : DN200 / ANSI6''

Manual Fire Monitor (SS150)

SS150 Standard Design Parameters(SS150WHL/F;SS150FHR/F)

China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,

marine fire pump,foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,

fire extinguishing system,Pls contact us for more specific details.

Descriptions:  Produced on requirement

Outlet:   Flange connection

Optional inlet : DN200 / ANSI6''

Rotation range:

Horizontal:  360° infinite

Vertical:   +75°~ -45°

Weight:  ~165Kg

Materials:

Body:  Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:  Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
