Hot Sale Steel Watertight Pressure Doors for vessel

Hot Sale Steel Watertight Pressure Doors for vessel

1.Type:marine steel watertight pressure door.

2.This marine steel side swing watertight pressure door applies to the gateways of watertight

Bulkhead below waterline,gateways on the semi-submerged ship that need watertight doors.

This watertight pressure door is of advanced type and able to bear internal pressure of 0.2Mpa and external pressure of 0.3Mpa without leakage.

Marine steel watertight pressure door

China Deyuan Marine Fitting Co.,ltd are leading supplier of marine outfitting equipment,such as marine steel doors,marine aluminum door,marine windows,marine hatch cover,marine pilot rope ladder,embarkation rope ladder,gangway ladder ,bulwark ladder etc.

This marine steel side swing watertight pressure door applies to the gateways of watertight

Bulkhead below waterline,gateways on the semi-submerged ship that need watertight doors.

This watertight pressure door is of advanced type and able to bear internal pressure of 0.2Mpa and external pressure of 0.3Mpa without leakage.

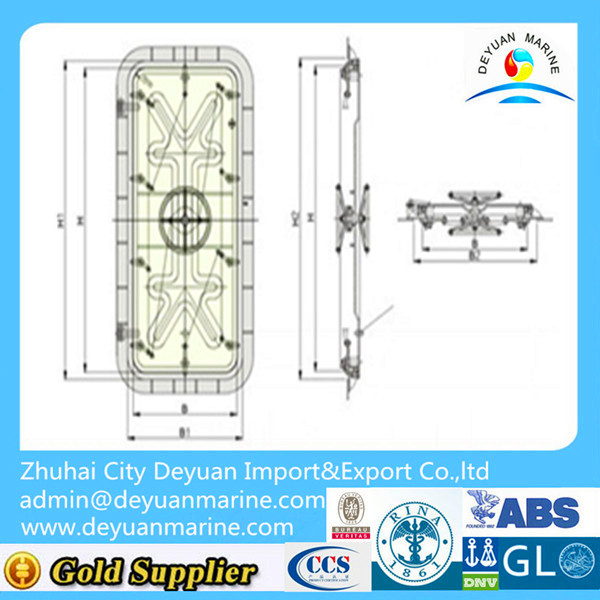

Specified number	Size of doorway H*B	Size of door H1*B1	Hole size of casting wall H2*B2
1050	1200*600	1076*576	1125*625
1260	1200*600	1276*676	1325*725
1460	1400*600	1476*676	1525*725
1475	1400*750	1476*826	1525*875
1490	1400*900	1476*976	1525*1025
1660	1600*600	1676*676	1725*725
1675	1600*750	1676*826	1725*875
1690	1000*900	1076*976	1125*1025
