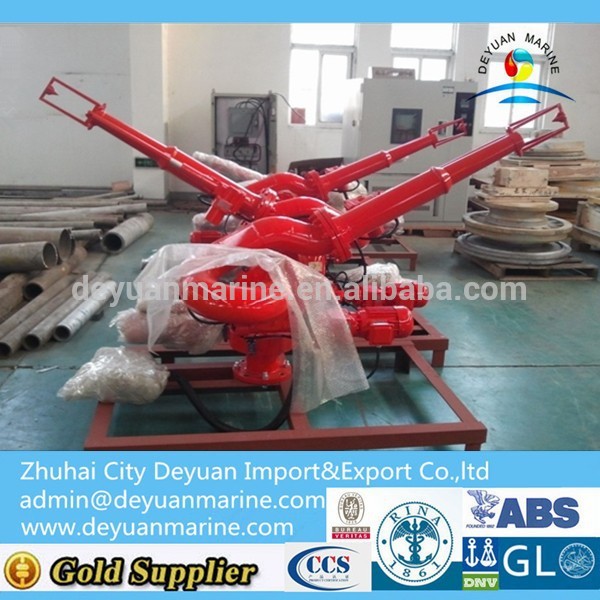

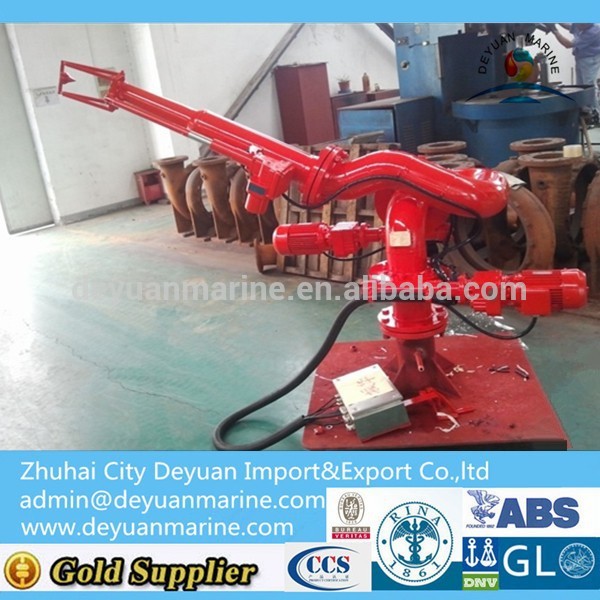

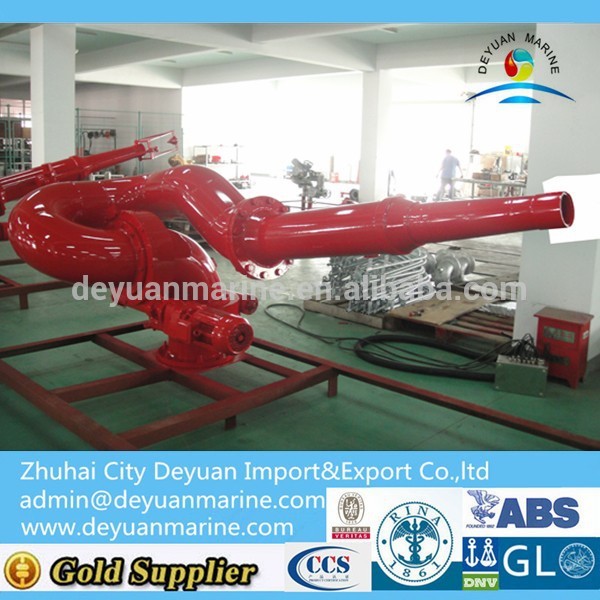

Hot Sales Marine Fire Monitor With 1200M3/H Capacity For Ship
1)Type of fire monitor :Electric double type fire monitor
2)Fire Monitor Capacity:32000L/MIN
3)Fire Monitor Model:SS250EL
4)Fire Monitor Material:stainless steel/carbon steel/Anti-corrosion aluminum alloy
5)Medium:Water &AFFF
6) Certificate:CCS,ABS,DNV,RINA,LR etc
*Fire Monitor capacity: 32000L/min
*fire monitor max pressure: 16bar
*Inlet: Flange DN250 PN16
*Outlet: flange connection
Optional inlet flange: DN300 / ANSI10''
Rotation range:
Horizontal: 340°
Vertical: +75°~ -45°
Weight: ~550Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Alice
E-mail: admin[at]deyuanmarine[dot]com
Skype: deyuanmarine
Tel: + 86 - 756 - 8301004
Fax: + 86 - 756 - 8305812
Mobile: +86 - 18202396900
Web: http://www.deyuanmarine.com
