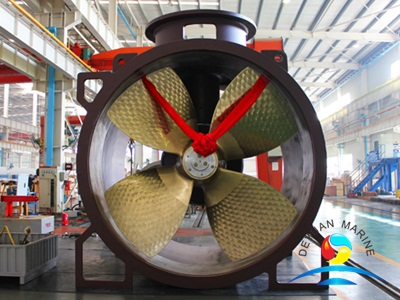

IACS Approved Hydraulic Bow Thruster/ Azimuth Thruster/ Hydraulic Thruster

Material:Alloy
Certification:ISO9001:2000
Blades: 4
Diameter (mm):350mm to 1500mm
Name:Hydraulic Bow Thruster
Propeller type: FPP or CPP
Power mode:Hydraulic
Propeller diameter:450mm to 2250mm
Thrust: 15.8kN to 230kN
Power:50kW to 1597kW
Speed:970rpm to 1750rpm
Certificate:
CCS, ABS, DNV, BV, NK, KR, LR, GL, RI
Availability:
  • Deyuan Marine

Our hydraulic bow thruster/azimuth thruster has a completed hydraulic system,

which includes the motor, pump station, control device, etc



Specifications for the hydraulic bow thruster/azimuth thruster



TypePropeller Dia.Max. ThrustMax.Input PowerInput Speed (rpm)Propeller Speed (rpm)Propeller Type
mmkNtonkW60Hz50Hz60Hz50Hz
CQYSHT1570015.81.6110517501450778785FP
CQYSHT3588034.33.524117501450656666FP
CQYSHT55110053.95.537817501450532534FP
CQYSHT70125068.6746517501450480483FP, CP
CQYSHT90140088.3960317501450429441FP, CP
CQYSHT11015501081174517501450396393FP, CP
CQYSHT135170013213.592111701450356356FP, CP
CQYSHT160185015716110311701450331328FP, CP
CQYSHT195205019119.513271170980299298FP, CP
CQYSHT235225023023.515971170980274273FP, CP
