Guangdong, China (Mainland)
DEYUAN MARINE
SS50&SS65
Stainless steel & carbon steel & aluminum alloy
Red
2000L/MIN &2400L/MIN
Manual operation
wooden case
10-30days

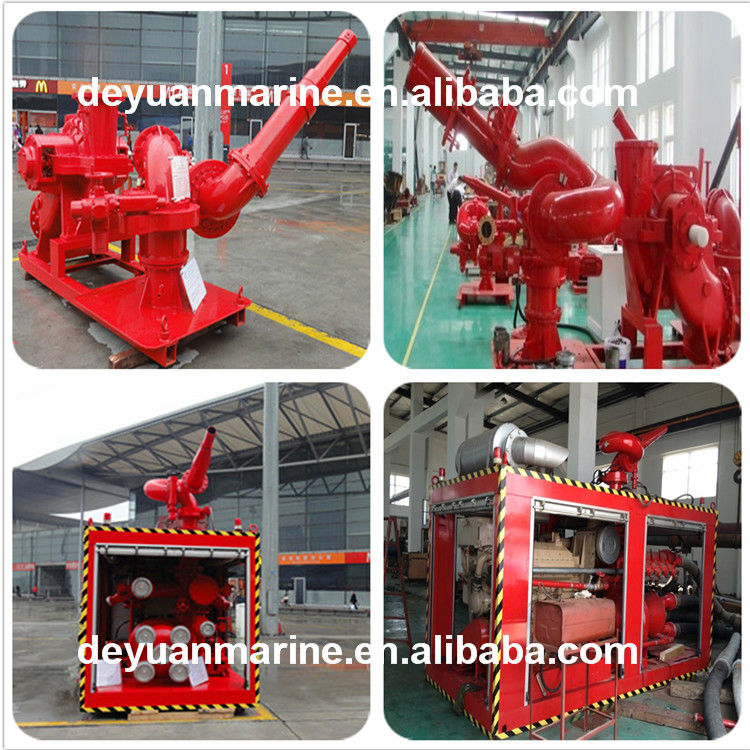

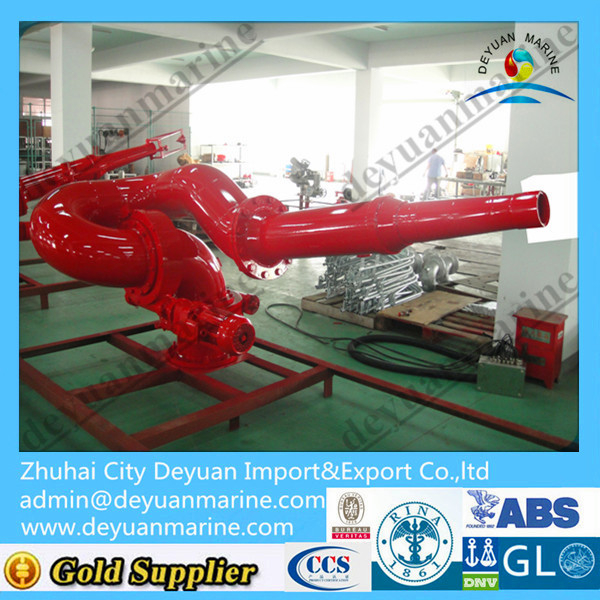

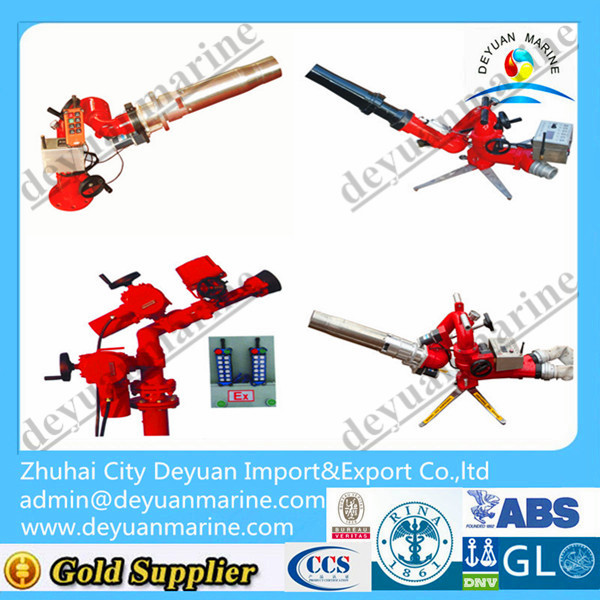

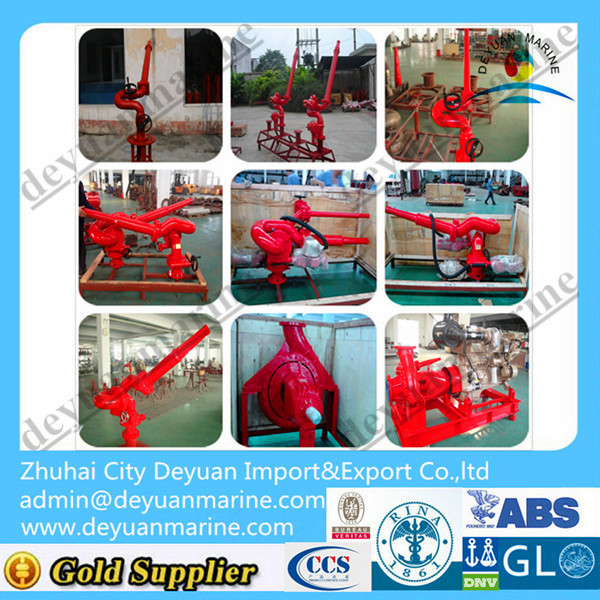

1)Type of fire monitor available: manual fire monitor
2)Fire Monitor Capacity:2000L/MIN Or 2400L/MIN
3)Fire Monitor Model:SS50 &SS65 &PSKD50 &PSKD65
4)Fire Monitor Material:stainless steel/carbon steel/Anti-corrosion aluminum alloy
*Fire Monitor capacity: 2000L/min; 2400L/min (120M3/H &150M3/H)
*The max pressure: 16bar
*Inlet: Flange DN50 PN16; DN65 PN16
*Outlet: Screw thread
*Optional inlet Flange: DN80 PN16/ANSI2''/ANSI½''
*Rotation range:
*Horizontal: 360° infinite
*Vertical: +85°~ -75°
*Weight: ~16Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Nozzle: Copper alloy / Aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
