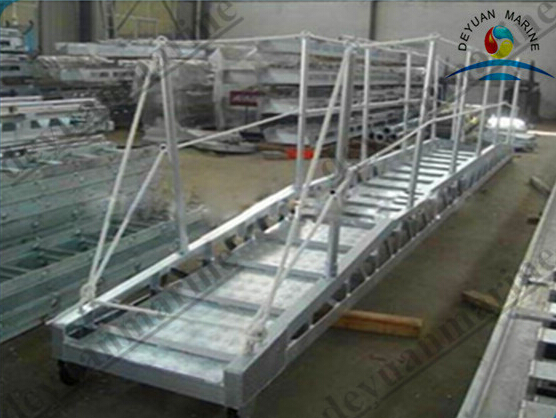

Marine Aluminum Accommodation Ladder

  • China (Mainland)

  • Deyuan Marine

  • various

  • Welded

  • Aluminum Alloy

  • ISO5488 & GB/T14360-1993

  • 55

  • Customerized

  • wooden pallet or iron pallet

  • 10-60days according to the quantity

Specifications


Marine Aluminum Accommodation Ladder:
1)Firm structure with load test
2)Quick delivery
3)Meet the standard of SOLAS and IMO



Marine Aluminum Accommodation Ladder

Standard: ISO5488 & GB/T14360-1993

The entire accommodation ladder systerm mainly includes the ladder, the upper platform, the lower platform, the post, the safey net, the turning device, the close device, winch(electric winch or pneumatic winch)





Aluminum Accommodation Ladder Feature:

1. Light weight, High intensity

2.With fixed arc steps, and withanti-skidslot on the surface of the steps.

3. The whole ladder is with anodic oxidation treatment, with good corrosion resistance

4. The ladder can designed as vertical flip type, flat place type and telescopic type





Main Size List(mm):

No of Step L L1 L2 L3 Max Height(H) Step Space Max use Angle
12 5600 3600 Decided when design 850-2000 3620 300-(350) 55°(60°)
14 6200 4200 4100
16 6800 4800 4590
18 7400 5400 5080
20 8000 6000 5800
22 8600 6600 6300
24 9200 7200 6800
26 9800 7800 7300
28 10400 8400 7800
30 11000 9000 8300
32 11600 9600 8800
34 12200 10200 9300
36 12800 10800 9800
38 13400 11400 10300
40 14000 12000 10800
42 14600 12600 11300
44 15200 13200 11800
46 15800 13800 12300
48 16400 14400 12800
50 17000 15000 13300
52 17600 15600 13800
54 18200 16200 14300
56 18800 16800 14700
58 19400 17400 15100
62 20600 18600 15500
66 21800 19800 15900
70 23000 21000 16300



* The length is customerized. The size in the list is just for reference.
