China (Mainland)
Deyuan marine
various
Hinge
Aluminum
CB/T3281-97
Customerized
Left or Right Outwards or Inwards
wooden pallet or iron pallet
10-60days according to the quantity

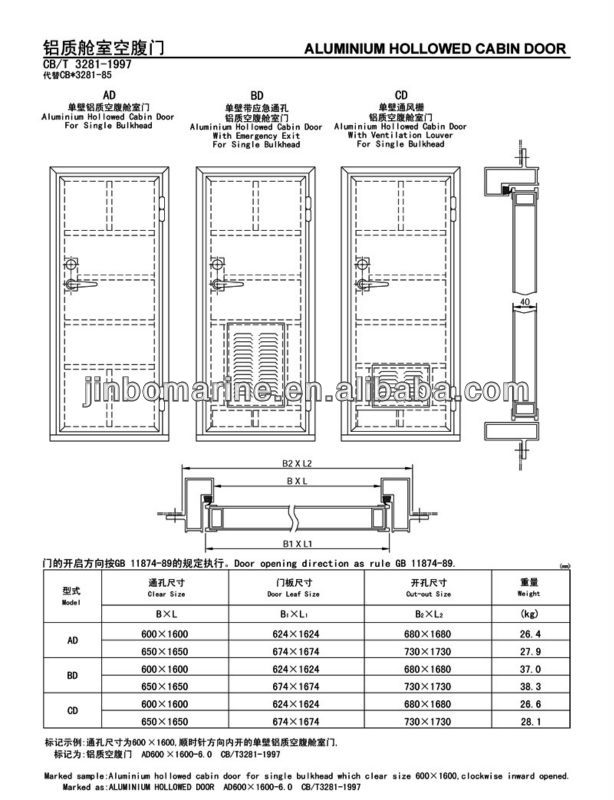

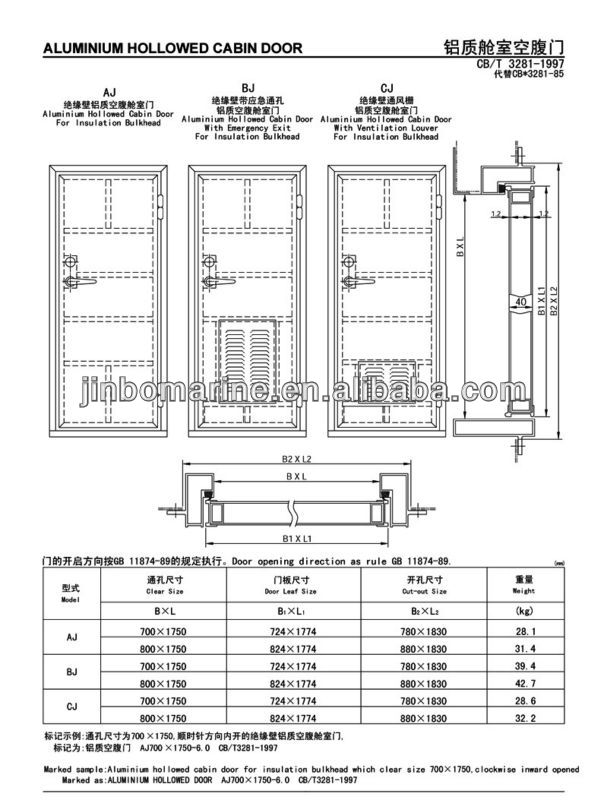

Marine Aluminum Hollow Cabin Door:
Standard: CB/T3281-97
It is used as the cabin door of various kinds of ships and war ships.The door face will be anodized baking finished or PV covered.
A-aluminum hollow cabin door
B-aluminum hollow cabin door with emergency exit
C-aluminum hollow cabin door with ventilation louver
D-aluminum hollow cabin door with window
*When order, pls specify single bulkhead or insulation bulkhead.
Doorway Size | Door Leaf Size | Wall Cut Out Size |
BXL | B1XL1 | B2XL2 |
600X1600 | 624X1624 | 680X1680 |
650X1650 | 674X1674 | 730X1730 |
700X1750 | 724X1774 | 780X1830 |
800X1750 | 824X1774 | 880X1830 |
Marine Aluminum Hollow Cabin Door:
Standard: CB/T3281-97
It is used as the cabin door of various kinds of ships and war ships.The door face will be anodized baking finished or PV covered.
A-aluminum hollow cabin door
B-aluminum hollow cabin door with emergency exit
C-aluminum hollow cabin door with ventilation louver
D-aluminum hollow cabin door with window
*When order, pls specify single bulkhead or insulation bulkhead.
Doorway Size | Door Leaf Size | Wall Cut Out Size |
BXL | B1XL1 | B2XL2 |
600X1600 | 624X1624 | 680X1680 |
650X1650 | 674X1674 | 730X1730 |
700X1750 | 724X1774 | 780X1830 |
800X1750 | 824X1774 | 880X1830 |
