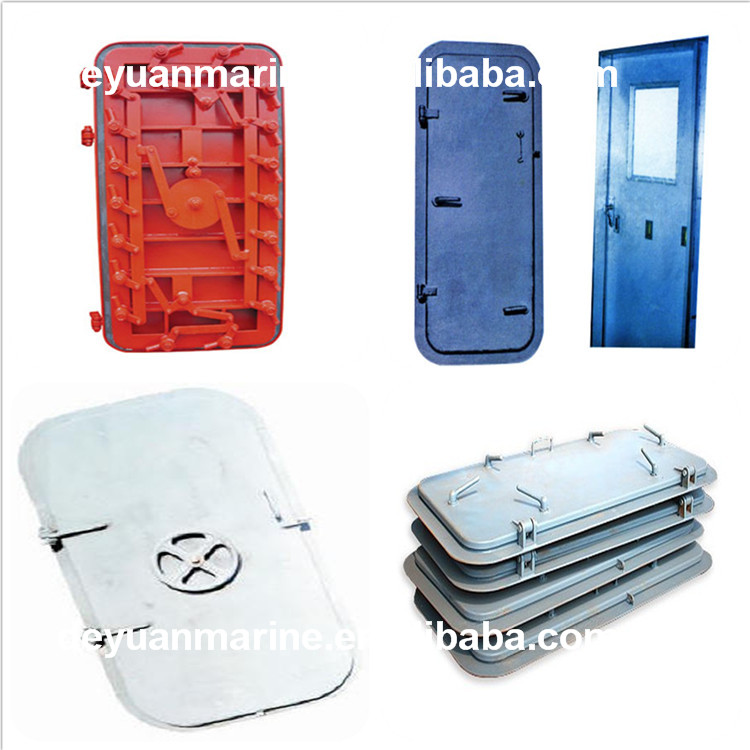

Marine Aluminum Quick Acting Weathertight Door

Specifications

Marine Aluminum quick acting weather tight door
1)Lighter weight
2)Good quality with hose test
3)CCS,BV,ABS,GL,NK certificate

Marine Aluminum Quick Acting Weathertight Door:

Standard: GB/T3477-96 &CB/T454-97 for reference.

The Aluminum weathertight door must pass the hose test with nozzle diameter 12.5mm and the water pressure 0.25Mpa.





Type:

JA-Aluminum weathertight door

JB-Aluminum weathertight door with round window

JC-Aluminum weathertight door with round window & guard bar

JD-Aluminum weathertight door with square window

JE-Aluminum weathertight door with round window & deadlight



Main Material:

Door Leaf-Aluminum

Door Frame-Aluminum(Bolted installment) or Steel (Welded installment)

Lever-Carbon Steel or Stainless Steel





Main Size List(mm):

Clear Size	Cut Out Size		Door leaf Size		Door Frame
WXh	W1Xh1	R	W2Xh2	t	Spec	Thickness
500x1000	560x1060	130	555x1055	4,6	75x50	6,8
600x1200	660x1260		655x1255
600x1400	660x1460		655x1455
750x1400	810x1460		805x1455
900x1400	960x1460		955x1455
600x1600	660x1660		655x1655
750x1600	810x1660		805x1655
900x1600	960x1660		955x1655
