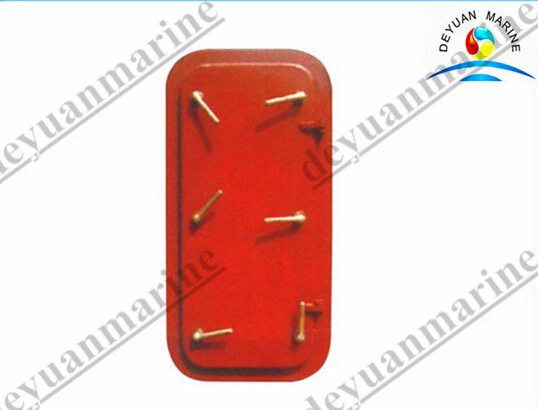

Marine B15 Fireproof Door with Emergency Exit & Vent Louver

Specifications

Marine Steel Fireproof Door
1) EC type approval certificate
2) Color can be chosen
3)Fire class:A60,A30,A0,B15,B0

Marine B15 Fireproof Door

Standard: CB3234-84

The steel fireproof door meets the fireproof requirements of SOLAS in 1974, corrected in 1983.We have the EC type approval certificate for the door.It can be used in passage way of fireproof area,bulkhead,casing wall of engine room and accommodations of ship.

Class:A60,A0,A30,B15,B0, B class is with emergency exit (kick-out panel) or vent louver.

Color of the door can be selected by the customer. We have the color sample for your reference.

Opening Direction: Left, Right, Outwards, Inwards.





Main Size List(mm):

Class	Doorways SiZE	Frame Size	Opening Size of Wall	T	D
	LXB	L1XB1	L2XB2	Decided by the designer	T+40
A	1600X600	1693x693	1700x700
	1600X650	1693X743	1700X750
	1650X600	1693X793	1700X800
	1650X700	1743X693	1750X750
	1700X600	1793X693	1800X700
	1700X650	1793X743	1800X750
	1700X700	1793X793	1800X800
	1800X600	1893X693	1900X700
	1800X700	1893X793	1900X800
	1800X800	1893X893	1900X900
	1850X800	1943X893	1950X900
B	1600X600	1664X680	1670X685
	1600X650	1664X730	1670X735
	1650X600	1714X680	1720X685
	1650X700	1714X780	1720X785
	1700X600	1764X680	1770X685
	1700X650	1764X730	1770X735
	1700X700	1764X780	1770X785
	1800X600	1864X680	1870X685
	1800X700	1864X780	1870X785
	1800X800	1864X880	1870X885
	1850X800	1914X880	1920X885
