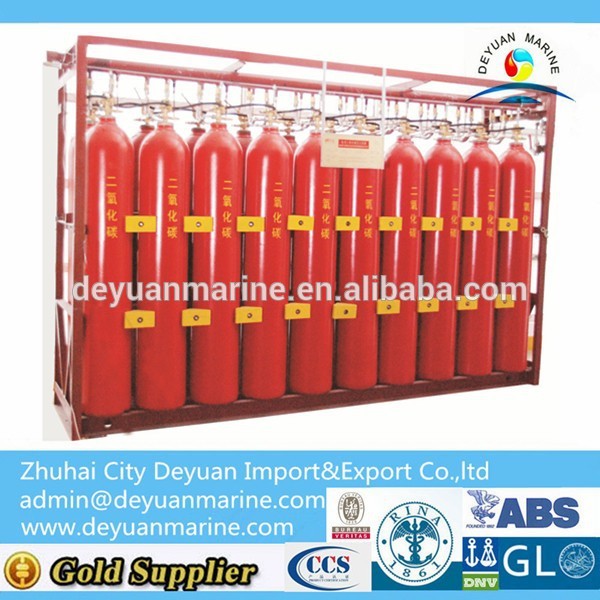

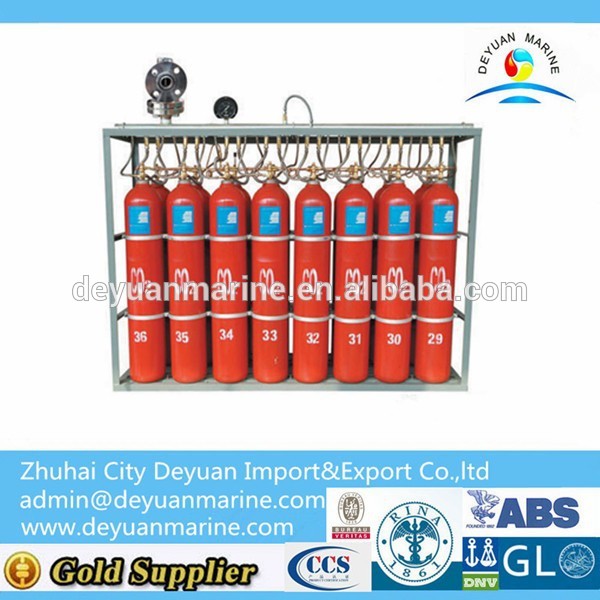

Marine CO2 Fire-extinguishing system with High quality

Inquire Add to Basket

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • Marine CO2 Fire-extinguishing system

  • 14.7Mpa

  • CO2 cylinder

  • wooden case

  • 30 day

Marine CO2 Fire-extinguishing system with High quality

Ship Used CO2 Fire-extinguishing system
1.Nominal pressure:14.7Mpa.
2.Cylinder volume:CO2 cylinder.

Type

fixed

Nominal pressure

14.7Mpa

Cylinder volume

CO2 cylinder

40L,68L

N2 cylinder

4L

CO2 filling rate

≤0.67kg/L

Environment condition

temperature

-10°C+50°C

humidity

93±3%

Electricity supply

Main supply

AC220V,50HZ/440v,60HZ

Auxiliary supply

DC24V,3A

Power

standby

≤30w

Working

200w

Operation method

manual



pneumatic

Remote control

mechanically

Local operation

Release delay

Mechanical delay

20-40S

Star up air source

Gas type

N2

Filling pressure

5.9Mpa
