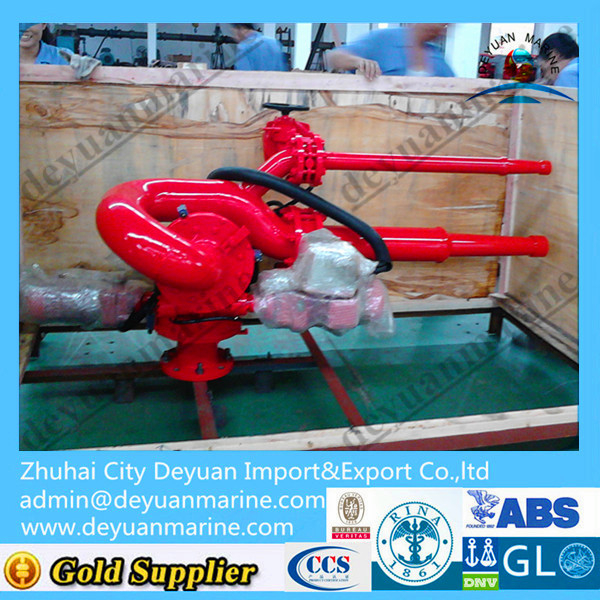

Marine Fire Fighting Fire Water Monitor

Marine Fire Fighting Fire Water Monitor 1)Type of fire monitor :Electric fire fighting monitor/water fire monitor/foam fire monitor

2)Fire Monitor Capacity:4000L/MIN

3)Fire Monitor Model:SS80EL

4)Fire Monitor Material:stainless steel/carbon steel/Anti-corrosion aluminum alloy

5)Medium:Water &AFFF

*Fire Monitor capacity: 4000L/min

*fire monitor  max pressure:  16bar

*Inlet:   Flange DN80 PN16

*Outlet:   screw thread

Optional inlet flange: DN100 PN16 / ANSI2½''/ANSI3''

Rotation range:

Horizontal:  340°

Vertical:   +85°~ -75°

Weight:  ~75Kg

Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
