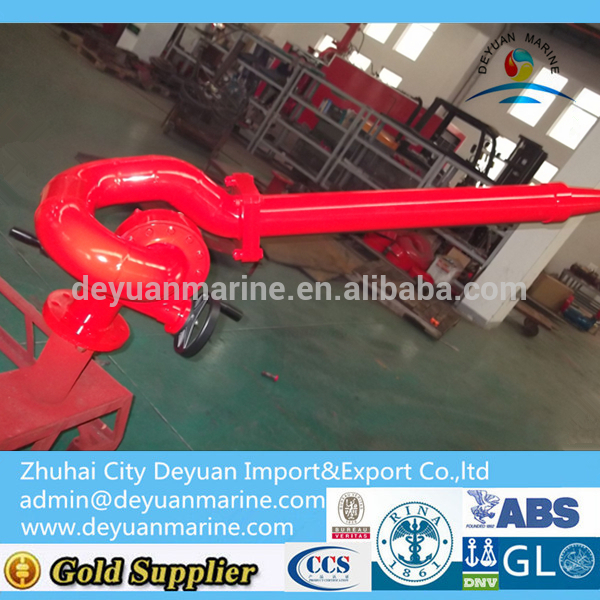

Marine Fire Monitor(SS250/HR)

Marine Fire Monitor(SS250/HR)



Marine Fire Monitor(SS250/HR)

1.Effective capacity:   32000L/min.

2.The max pressure:    16bar.

3.Inlet:   Flange DN250 PN16 .

4.Outlet:   Flange connection

Marine Fire Monitor(SS250/HR)

SS250 Standard Design Parameters      SS250HR/F

China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,

marine fire pump,foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,

fire extinguishing system,Pls contact us for more specific details.

Descriptions:    Produced on requirement

Effective capacity:   32000L/min

The max pressure:    16bar

Inlet:   Flange DN250 PN16

Outlet:   Flange connection

Optional inlet flange: DN300/ ANSI10''

Rotation range:

Horizontal:  360° infinite

Vertical:   +75°~ -45°

Weight:  ~220Kg

Materials:

Body:  Stainless Steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:  Stainless Steel/Anti-corrosion aluminum alloy

Painting:   Red RAL300

The monitor can be arrested in any horizontal or vertical position
