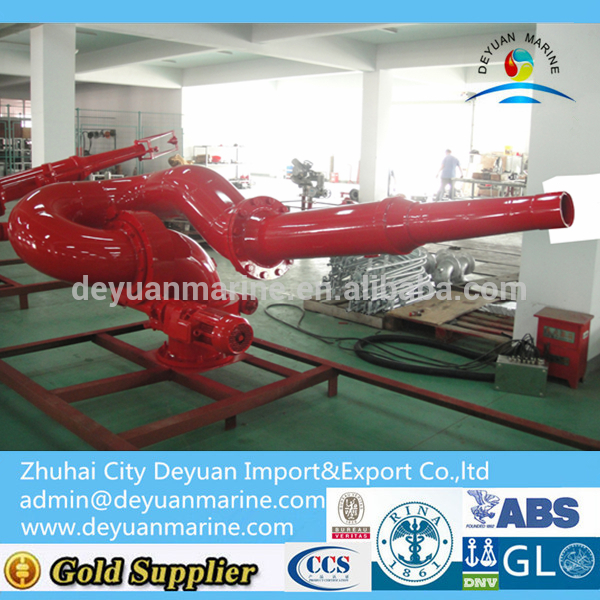

Marine Fire Water Monitor for sale

  • Deyuan Marine

Fire Monitor (SS100EL)



Fire Monitor (SS100EL)

1.Effective capacity:   6000L/min

2.The max pressure:   16bar

3.Inlet:   Flange DN100 PN16

4.Outlet:   Screw thread

Fire Monitor (SS100EL)


SS100EL Standard Design Parameters      SS100EL/F

China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,marine fire pump,

foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,fire extinguishing system,

Pls contact us for more specific details.

Descriptions:    Produced on requirement

Effective capacity:   6000L/min

The max pressure:   16bar

Inlet:   Flange DN100 PN16

Outlet:   Screw thread

Optional inlet flange: DN150 / ANSI4''

Rotation range:

Horizontal:  340°

Vertical:   +85°~ -75°

Weight:  ~75Kg

Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
