Marine Fish finder
General description

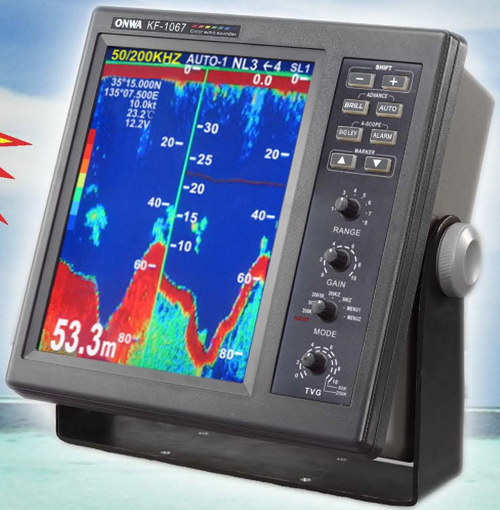

The KF-1067 is one of the many developments in the field of echo sounding. The compact, lightweight but rugged unit is easy to install and operate and is suitable for both fresh and saltwater application.
Advantages
Choice of frequency 50KHz, 200KHz or 50 &200Khz(Dual frequency)
Choice of output power 1kw or 2kw
10.4” TFT LCD display with 8-color or multi-level amber presentation
Auto Mode for hands-off operation
Variety of display modes A-scope, bottom-lock expansion, marker zoom and unique bottom zoom displays
Compound temperature sensor option
Digital and Analog displays of navigational data
Five pulse lengths for excellent performance on both shallow and deep ranges
Universal 12-24 VDC power supply drawing 50w of power at maximum
Water temperature sensor optionally available
Specifications
Display: 10.4” color TFT LCD
Basic range: 5/10/20/40/80/150/300/600 meters, 15/30/60/120/200/400/1000/2000 feet, 3/5/10/20/40/80/150/300 Fathoms, 3/5/10/30/50/100/200/350 Passi
Range shift up to 300 meters
Bottom lock expansion range 5/10 meters
Interfere Rejecter: Rejects unwanted signals by comparing last and present echoes in strength
Input/output data: NMEA0183
Environmental condition: Ambient temperature 0-50c, relative humidity: 85% at +40c, water proofing: display unit IPX4
