Marine Korean warping roller

Specifications

Warping roller:
1.Material:ZG200-400,Copper
2.Surface:Balsting, Machine, Epoxy paint
3.Certificate:CCS,BV,ABS,DNV,LR
4.

Warping roller:

Marine Korean warping roller:

Feature:



1.This product can only be used for bollard cable leading of ships.

2.The breaking load of tightwire is the highest.

3.materials: cast iron,cast steel;  materials of fitting parts :quality alloy carbon steel,cast aluminum bronze,ash cast steel,brass.

4.Combination type: double warping roller with plate, three warping roller with plate and more.

5.Compact design,precision machined,smooth surface,easily removable shafts.

6.Certificate:CCS,ABS,BV,GL and more.

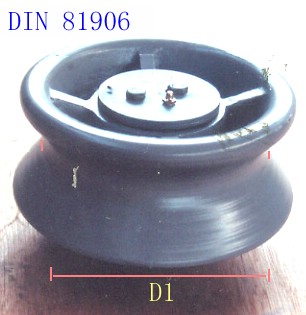

We supply various type of warping roller: JIS warping roller,VIS38 warping roller,DIN81906 warping roller, warping roller type EU, warping roller type G,NS2585 warping roller and more.

We supply high-quality products, competitive price and professional service.

For more detailed information, please contact me .

Drawing:

Korean warping roller
Product No.	NOMINAL DIA.(mm)	Φ(mm)	Φ1(mm)	Φ2(mm)	H(mm)	c(mm)
KWR-001	150	150	216	240	137	5
KWR-002	200	200	280	310	157	5
KWR-003	250	250	350	380	177	6
KWR-004	300	300	400	440	197	7
KWR-005	350	350	460	500	217	7
KWR-006	400	400	520	560	237	7
KWR-007	450	450	590	630	257	7
KWR-008	500	500	660	700	277	7
