Marine Pilot Ladder

  • China (Mainland)

  • Deyaun Marine

  • various

  • Link

  • Hardwood or Aluminum

  • CB/T3142-94, ISO799-2004

  • Customerized

  • CCS,DNV, BV, NK, GL, LR, ABS

  • PP bag

  • 10-60days according to the quantity

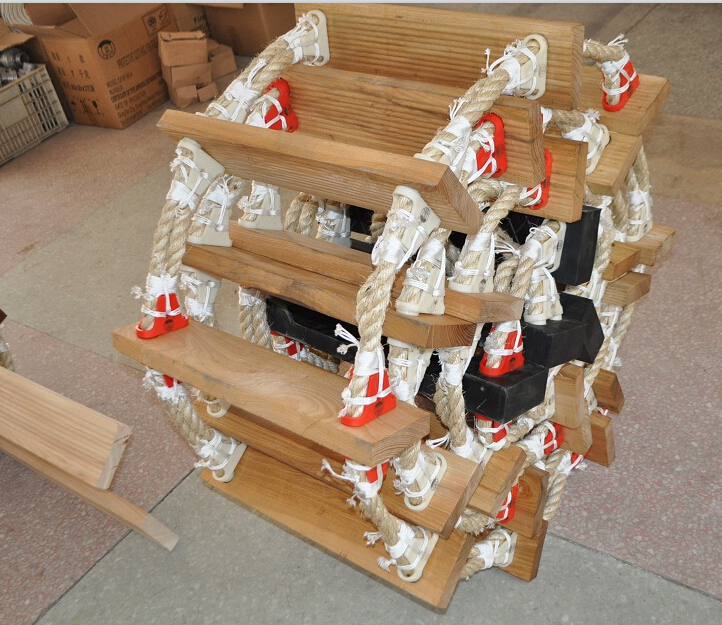

Marine Pilot Ladder:

Design Standard: CB/T3142-94, ISO799-2004, IMO A.889(21), JIS F2615-1982, SOLAS 1983 REVISION

Pilot Ladder is used for the pilot to embark a ship or go aboard

Good Quality With DNV type approval certificate





Main Material:

Step: Hard Wood

Twist prevention board: Hard Wood

Rope:Manila Rope

Timble: plastic and steel





Main Size List(mm):

No of Step No of twist prevention board prevention board place L(mm) L1(mm) Weight(kg)
6 1 the 5th board 1860 1550 22
7 2170 1860 25
8 2480 2170 28
9 2790 2480 31
10 3100 2790 34
11 3410 3100 37
12 3720 3410 40
13 4030 3720 43
14 2 the 5th and 12th boards 4340 4030 52
15 the 5th and 13th boards 4650 4340 55
16 the 5the and 14th boards 4960 4650 58
17 5270 4960 61
18 5580 5270 64
19 5890 2280 67
20 6200 5890 70
21 6510 6200 73
22 6820 6510 76
23 3 the 5th,14th and 21st boards 7130 6820 86
24 the 5th,14th and 22nd boards 7440 7130 89
25 the 5th,14th and 23rd boards 7750 7440 92
26 8060 7750 95
27 8670 8060 98
28 8680 8370 101
29 8990 8680 104
30 9300 8990 107



When the customer order, the length and the the step material must be supplied.
