Guangdong, China (Mainland)
Deyuan Marine
Cleat Fairlead with Single Roller for hot sale
DIN type roller fairlead
Marine Roller for Fairlead with good price
Steel, cast iron, etc
GL,DNV,CCS,ABS,BV;
Standard Export package
Within 20 days
Marine Roller for Fairlead with good price

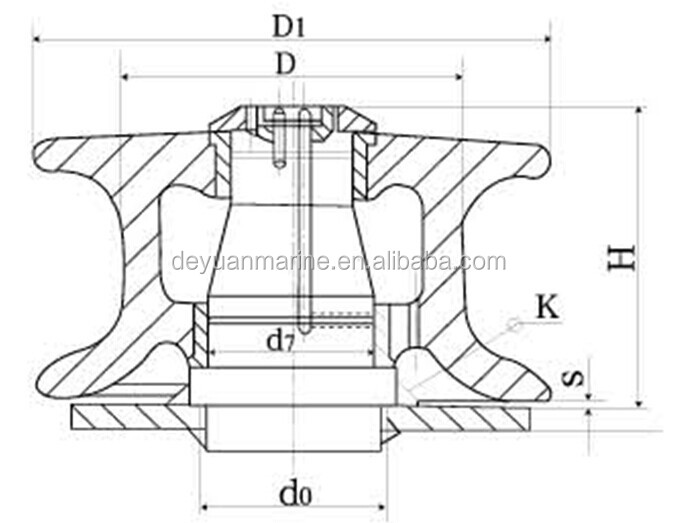

ROLLER DIA (mm) | Wire Rope's Maximum Diameter(mm) | Outline Dimension(mm) | Weight (kg) | |||||||||
synthetic fiber rope | hemp rope | Tensile Strength 1550N/mm⊃2; | D1 | D0 | D7 | H | s | t | k | |||
6×24 | 6×37 | |||||||||||
150 | 32 | 45 | 17 | 15 | 240 | 90 | 79 | 154 | 5 | 12 | 9 | 24.8 |
200 | 40 | 55 | 22.5 | 19.5 | 310 | 115 | 99 | 186 | 5 | 14 | 10 | 49.3 |
250 | 45 | 65 | 24 | 24 | 380 | 135 | 119 | 230 | 6 | 14 | 10 | 92 |
300 | 50 | 70 | 30 | 28 | 440 | 155 | 129 | 255 | 7 | 16 | 12 | 127 |
350 | 55 | 75 | 37.5 | 34.5 | 500 | 175 | 149 | 271 | 7 | 18 | 13 | 168 |
400 | 65 | 85 | 41 | 39 | 560 | 185 | 159 | 307 | 7 | 20 | 14 | 252 |
450 | 80 | - | 44.5 | 43 | 630 | 210 | 178 | 316 | 7 | 20 | 14 | 310 |

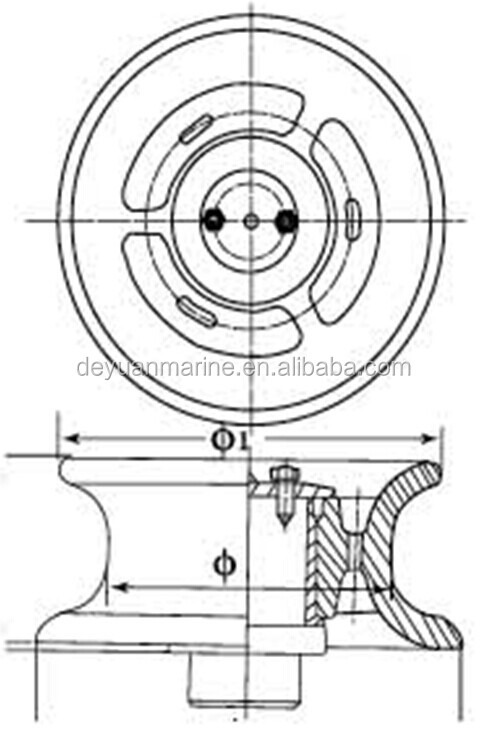

NOMINAL DIA (mm) | Ø | 1 | 2 | H | C |
150 | 150 | 216 | 240 | 137 | 5 |
200 | 200 | 280 | 310 | 157 | 5 |
250 | 250 | 350 | 380 | 177 | 6 |
300 | 300 | 400 | 440 | 197 | 7 |
350 | 350 | 460 | 500 | 217 | 7 |
400 | 400 | 520 | 560 | 237 | 7 |
450 | 450 | 590 | 630 | 257 | 7 |
500 | 500 | 660 | 700 | 277 | 7 |

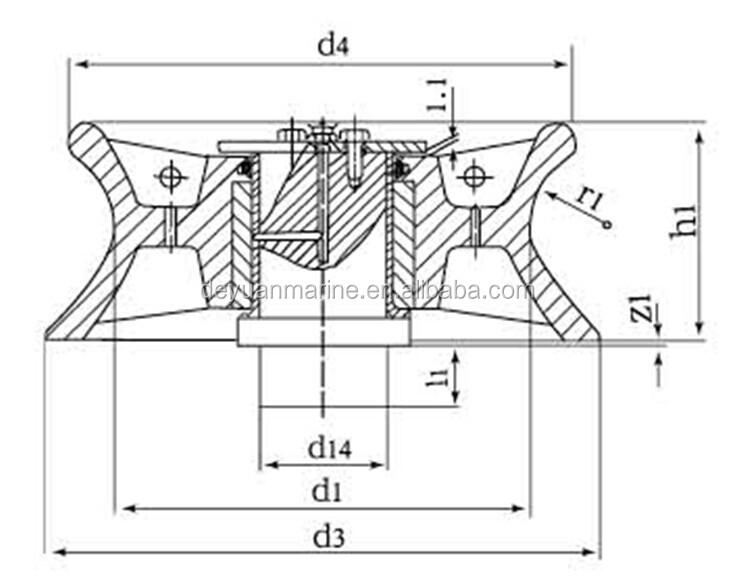

Model | Max traction load (KN) | d1(mm) | d3(mm) | d4(mm) | d14(mm) | h1(mm) | l1(mm) | r1(mm) | z1(mm) | Weight (kg) |
1 | 10 | 160 | 210 | 195 | 60 | 80 | 50 | 25 | 1.5 | 12 |
2 | 20 | 200 | 265 | 245 | 70 | 102 | 32 | 2.5 | 18 | |
3 | 32 | 250 | 330 | 300 | 85 | 126 | 42 | 33 | ||
5 | 50 | 320 | 420 | 390 | 106 | 160 | 55 | 68 | ||
8 | 80 | 400 | 530 | 490 | 125 | 208 | 60 | 73 | 136 | |
12 | 125 | 450 | 610 | 560 | 160 | 256 | 85 | 95 | 225 | |
20 | 200 | 500 | 640 | 620 | 190 | 278 | 100 | 111 | 4.5 | 336 |
32 | 320 | 560 | 780 | 740 | 230 | 348 | 150 | 125 | 625 |
Contact: Anna Wong
Email: Sales11[at]deyuanmarine[dot]com
China Deyuan Marine Fitting Co., Ltd.
Subsidiary: Zhuhai City Deyuan Import & Export Co., Ltd.
Tel: +86-756-6302052
Fax: +86-756-8305812
MP: +86-13798955790
WhatsApp: +86-13798955790
Skype: sales11[at]deyuanmarine[dot]com
http://www.deyuanmarine.com
