DEYUAN MARINE

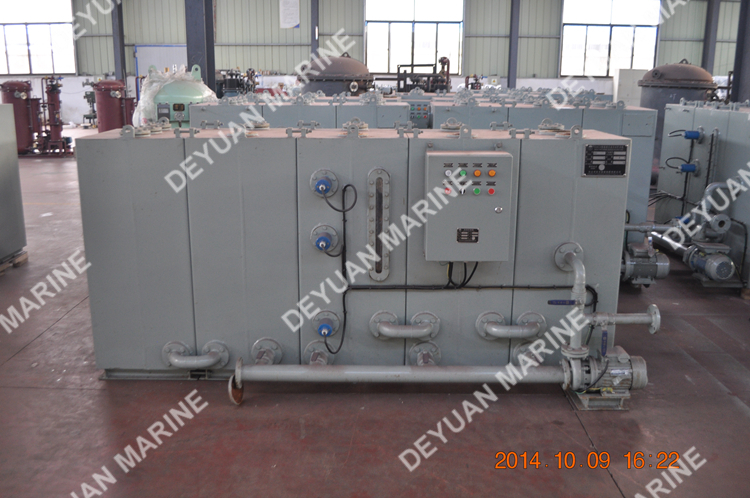

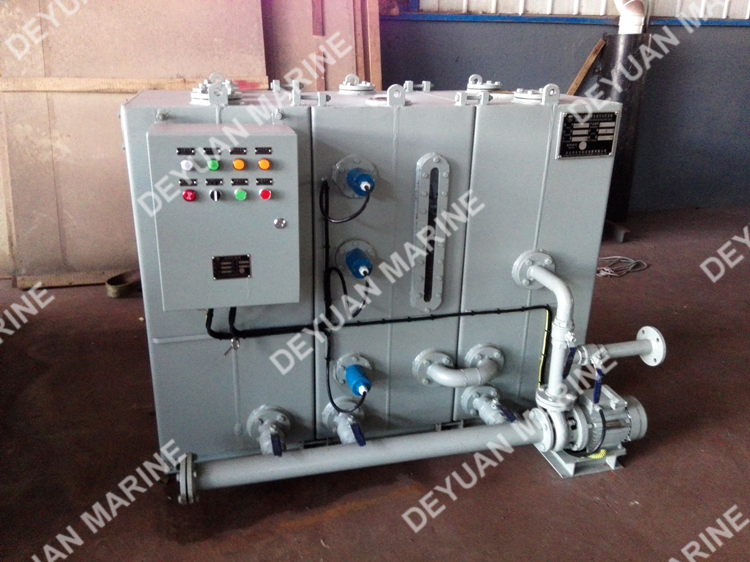

Marine Sewage Comminuting and Disinfecting Holding Tank
380V,50HZ,3Phase
1.0~1.5KW.
CCS
Standard export packaging
30~45 days after yr payment
Marine Sewage Comminuting and Disinfecting Holding Tank
1.Electricity:380V,50HZ,3 Phase.
2.Power:1.0~1.5KW.
3.Certificate:CCS.
This SWCH type Holding tank also can be a sewage comminuting and disinfecting system regulated by Annex IV of MARPOL 73/78, for the temporary storage of sewage when the ship is less than 3 nautical miles from the nearest land, or transfer to a sewage treatment plant.
The Holding tank has the function of dosing disinfecting,sludge cutting,inner flushing and discharging the treated sludge to go overboard, open sea or shore connection.
Simple structure, easy operation of the Holding Tank, which has been obtained the Certificate from CCS Nanjing.
Model | SWCH- | ||||||||||||||||
0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 15.0 | |||||
Capacity(m⊃3;) | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 15.0 | ||||
Quality of Effluent | Colichin NOT MORE THAN 1000pcs/100ml,suspended solid shall not be found | ||||||||||||||||
Electricity | 380V,50HZ,3 phase | ||||||||||||||||
Power | 1.0kw | 1.5kw | |||||||||||||||
Discharge pressure | 0.08MPa or as order | 0.1MPa or as order | |||||||||||||||
External dimensions L*B*H(mm) | 900 * 650 * 1350 | 900 * 800 * 1500 | 1200 * 950 * 1500 | 1300 * 1100 * 1500 | 1400 * 1300 * 1500 | 1800 * 1500 * 1500 | 1800 * 1500 * 2000 | 2000 * 1600 * 2000 | 2500 * 1650 * 2000 | 2800 * 1850 * 2000 | 2800 * 2050 * 2300 | 2850 * 2250 * 2300 | 3250 * 2450 * 2300 | ||||
Dry weight(kg) | 380 | 450 | 560 | 650 | 730 | 950 | 1200 | 1600 | 2000 | 2500 | 3000 | 3200 | 3600 | ||||
Wet weight(kg) | 680 | 950 | 1560 | 2150 | 2730 | 3950 | 5200 | 6600 | 8000 | 10500 | 13000 | 15200 | 18600 | ||||
