China (Mainland)
Deyuan Marine
various
Hinge
Steel Q235A
CB751-68
Customerized
Left or right outwards
wooden pallet or iron pallet
10-60days according to the quantity
Marine Steel Door CB751-68 for Inland River:
Standard: CB751-68
This kind of marine steel door is used for working cabin and the inland ship.

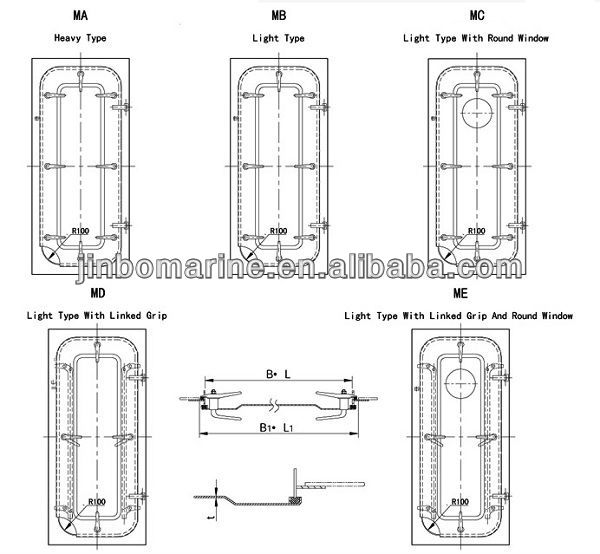

MA-heavy steel watertight door
MB-light steel watertight door
MC-light steel watertight door with fixed round window
MD-light steel watertight door with linked clips
ME-light steel watertight door with linked clips & fixed found window

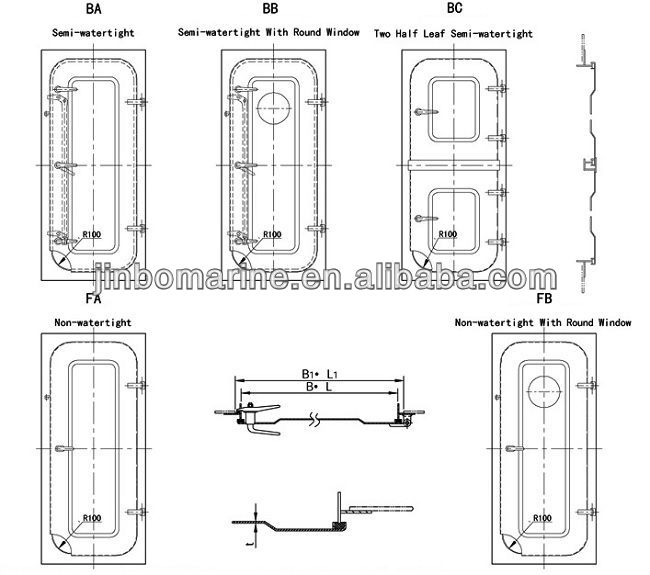

FA-Non-watertight steel door
FB-Non-watertight steel door with fixed round window
BA-Semi-watertight steel door
BB-Semi-watertight steel door with fixed round window
BC-Semi-watertight steel door with double half leaves
*Watertight steel door must pass the hose test with nozzle diameter 12.5mm and the water pressure 0.25Mpa. Semi-watertight steel door must pass the hose test from the top to the bottom, but without the water pressure requirement.
Type | Doorway Size | Wall Opening Size | B2 | B3 | L2 | L3 | t | Clip Qty | Weight(kgs) | |
BXL | B1XL1 | |||||||||
MA | 500X1000 | 560X1060 | 536 | 672 | 1040 | 1172 | 5 | 4 | 60.1 | |
600X1200 | 660X1260 | 640 | 772 | 1240 | 1372 | 75.5 | ||||
600X1400 | 660X1460 | 1440 | 1572 | 6 | 85 | |||||
650X1550 | 710X1610 | 690 | 822 | 1590 | 1722 | 99 | ||||
650X1650 | 710X1710 | 1690 | 1822 | 103 | ||||||
800X1650 | 860X1710 | 840 | 972 | 8 | 126 | |||||
MB | 500X1000 | 560X1060 | 536 | 672 | 1036 | 1172 | 3 | 4 | 46 | |
MB MC | 600X1200 | 660X1260 | 636 | 772 | 1236 | 1372 | 6 | 55.9 | 56.5 | |
600X1400 | 660X1460 | 1436 | 1572 | 65.5 | 66.1 | |||||
650X1550 | 710X1610 | 686 | 822 | 1586 | 1722 | 74 | 75.2 | |||
650X1650 | 710X1710 | 1686 | 1822 | 76 | 77.2 | |||||
800X1650 | 860X1710 | 836 | 972 | 93.6 | 94.9 | |||||
MD ME | 600X1400 | 660X1460 | 636 | 772 | 1436 | 1572 | 2 | 67.3 | 68 | |
650X1550 | 710X1610 | 686 | 822 | 1586 | 1722 | 76.4 | 77.6 | |||
650X1650 | 710X1710 | 1686 | 1822 | 78.6 | 79.8 | |||||
800X1650 | 860X1710 | 836 | 836 | 96.3 | 97.5 | |||||
BA BB | 500X1000 | 560X1060 | 536 | 672 | 1036 | 1172 | 2 | 42.3 | | |
600X1200 | 660X1260 | 636 | 772 | 1236 | 1372 | 52.3 | 52.9 | |||
600X1400 | 660X1460 | 1436 | 1572 | 56.8 | 57.4 | |||||
650X1550 | 710X1610 | 686 | 822 | 1586 | 1722 | 1 | 68.7 | 70 | ||
650X1650 | 710X1710 | 1686 | 1822 | 70.8 | 72 | |||||
800X1650 | 860X1710 | 836 | 922 | 84.3 | 85.5 | |||||
BC | 650X1650 | 710X1710 | 684 | 820 | 1684 | 1820 | 2 | 74.2 | ||
800X1650 | 860X1710 | 934 | 920 | 89 | ||||||
FA FB | 500X1000 | 560X1060 | 536 | 668 | 1036 | 1168 | — | 30.1 | — | |
600X1200 | 660X1260 | 636 | 768 | 1236 | 1368 | 39.2 | 52.9 | |||
600X1400 | 660X1460 | 1436 | 1568 | 42.2 | 57.4 | |||||
650X1550 | 710X1610 | 686 | 818 | 1586 | 1718 | 49.4 | 70 | |||
650X1650 | 710X1710 | 1686 | 1818 | 50.8 | 72 | |||||
800X1650 | 860X1710 | 836 | 968 | 62.4 | 85.5 |
