Marine Steel Quick Acting Weathertight Door with Single Lever

  • China (Mainland)

  • Deyuan Marine

  • various

  • Hinge

  • Steel

  • GB/T3477-96

  • Customerized

  • Left or right outwards

  • 6/8/10mm

  • wooden pallet or iron pallet

  • 20-60days according to the quantity

Specifications


Marine steel quick acting Weathertight Door:
1)Thickness: 6mm or 8mm
2)Good quality with hose test
3)Quick opening & closing



Marine Steel Quick Acting Weathertight Door with Single Lever

Standard:GB/T3477-1996 for reference

The steel weathertight door must pass the hose test with nozzle diameter 12.5mm and the water pressure 0.25Mpa.





Type:

JA-Steel weathertight door

JB-Steel weathertight door with round window

JC-Steel weathertight door with round window & guard bar

JD-Steel weathertight door with square window

JE-Steel weathertight door with round window & deadlight





Main Material:

Door Leaf-Steel (Q235A)

Door Frame-Steel (Q235A)

Lever-Carbon Steel or Stainless Steel





Main Size List(mm):

Clear Size Cut Out Size Door leaf Size Door Frame
WXh W1Xh1 R W2Xh2 t Spec Thickness
500x1000 560x1060 130 555x1055 6,8 75x50 6,8
600x1200 660x1260 655x1255
600x1400 660x1460 655x1455
750x1400 810x1460 805x1455
900x1400 960x1460 955x1455
600x1600 660x1660 655x1655
750x1600 810x1660 805x1655
900x1600 960x1660 955x1655

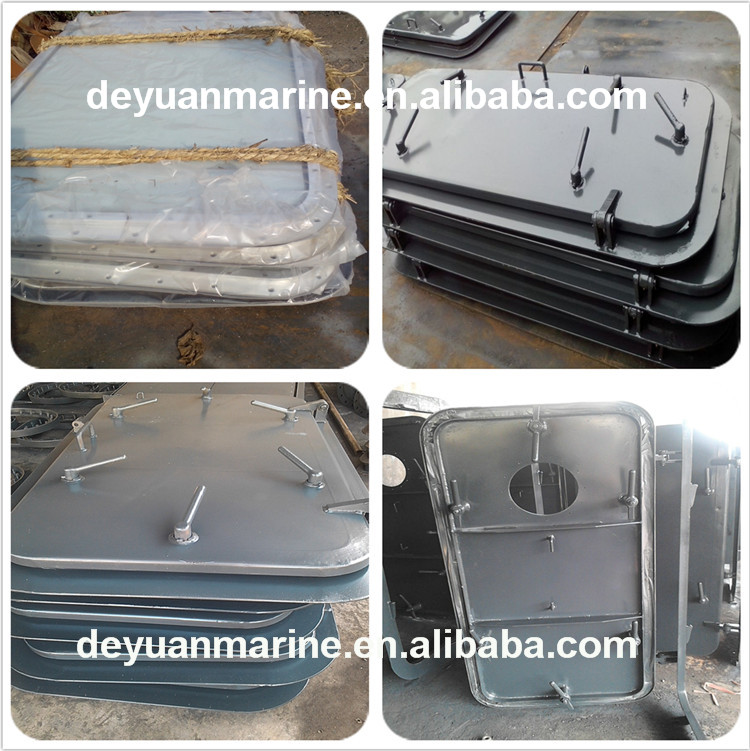

  门06
