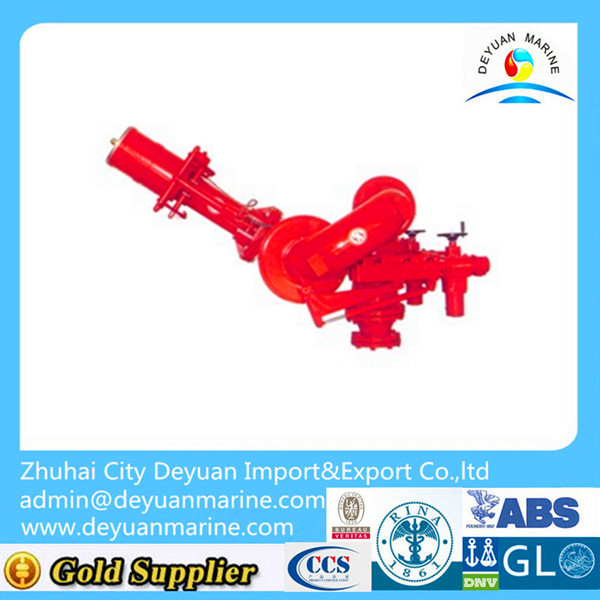

Marine Used Electric double pipe fire water monitor(60000L/min)

Inquire Add to Basket

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • 60000L/min

  • 16bar

  • Flange DN3000 PN16

  • Flange connection

  • ~1000Kg

  • NBR

  • Electric

  • Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy

  • Hard aluminum alloy

  • Deyuan

  • wooden case

Marine Used Electric double pipe fire water monitor(60000L/min)

1.Effective capacity:   60000L/min.

2.The max pressure:    16bar.

3.Inlet:   Flange DN300 PN16 .

4.Outlet:   Flange connection

Electric double pipe fire monitor

SS300EL Double Pipe Monitor Standard Design Parameters      SS300DEL/F

Descriptions:    Produced on requirement

Effective capacity:   60000L/min

The max pressure:    16bar

Inlet:   Flange DN300 PN16

Outlet:   Flange connection

Optional inlet flange: ANSI 12''

Rotation range:

Horizontal:  340°

Vertical:   +75°~ -45°

Weight:  ~1000Kg

Materials:

Body:  Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:  Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
