Deyuan Marine
Cleat Fairlead with Single Roller for hot sale
DIN type roller fairlead
Cleat Fairlead with Single Roller for hot sale
Steel
GL,DNV,CCS,ABS,BV;
Standard Export package
Within 20 days

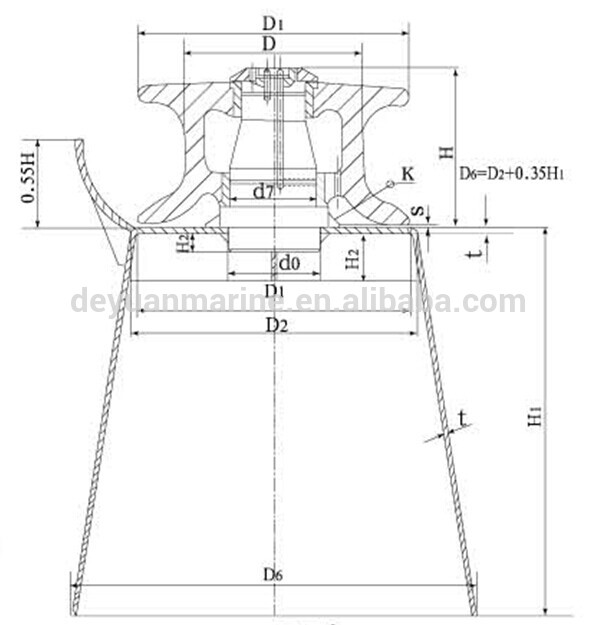

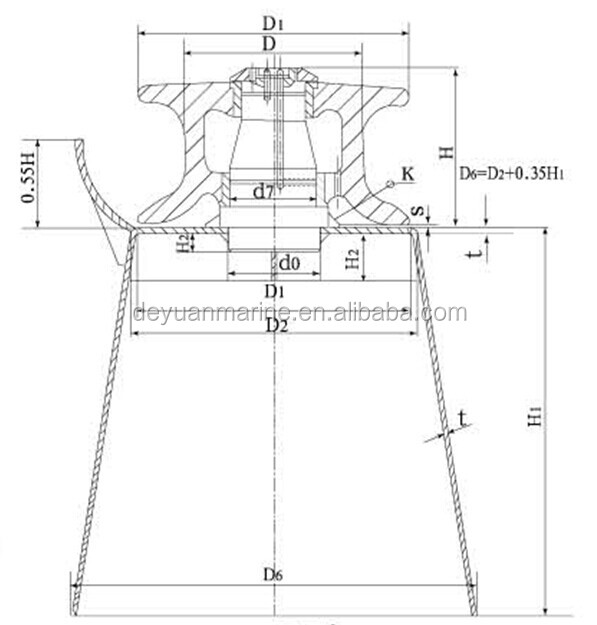

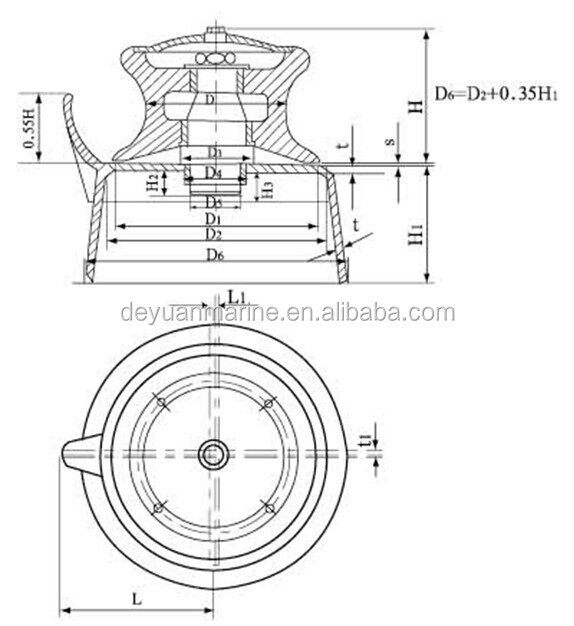

| ROLLER DIA (mm) | Wire Rope's Maximum Diameter(mm) | Outline Dimension(mm) | Weight of roller (kg) | Weight of Base(kg) H1=1000 | ||||||||||||||||||
| Tensile Strength1550N/mm⊃2; | hemp rope | synthetic fiber rope | D1 | D2 | D3 | D4 | D5 | L≈ | H | H1 | H2 | H3 | S | t | t1 | cast iron(HT) | cast steel(ZG) | |||||
| 6×24 | 6×30 | 6×37 | ||||||||||||||||||||
| 150 | 17 | 17.5 | 15 | 45 | 32 | 240 | 270 | 90 | 71 | 60 | 245 | 211 | 40 | 75 | 3 | 12 | 8 | 32.1 | 33.8 | 129 | ||
| 200 | 22.5 | 21.5 | 19.5 | 55 | 40 | 310 | 340 | 115 | 95 | 80 | 285 | 251 | 50 | 85 | 3 | 14 | 10 | 64.6 | 68 | 178 | ||
| 250 | 24 | 26 | 24 | 65 | 45 | 380 | 410 | 140 | 107 | 90 | 323 | 298 | 60 | 100 | 4 | 14 | 10 | 108 | 114 | 207 | ||
| 300 | 30 | 32.5 | 28 | 70 | 50 | 440 | 470 | 160 | 127 | 110 | 355 | 321 | 60 | 100 | 4 | 16 | 14 | 159 | 168 | 265 | ||
| 350 | 37.5 | 39 | 34.5 | 75 | 55 | 500 | 530 | 180 | 144 | 125 | 390 | 346 | 65 | 100 | 4 | 18 | 14 | 235 | 248 | 332 | ||
| 400 | 41 | 39 | 39 | 85 | 65 | 560 | 590 | 200 | 161 | 140 | 420 | 371 | 70 | 100 | 5 | 20 | 16 | 336 | 355 | 401 |
