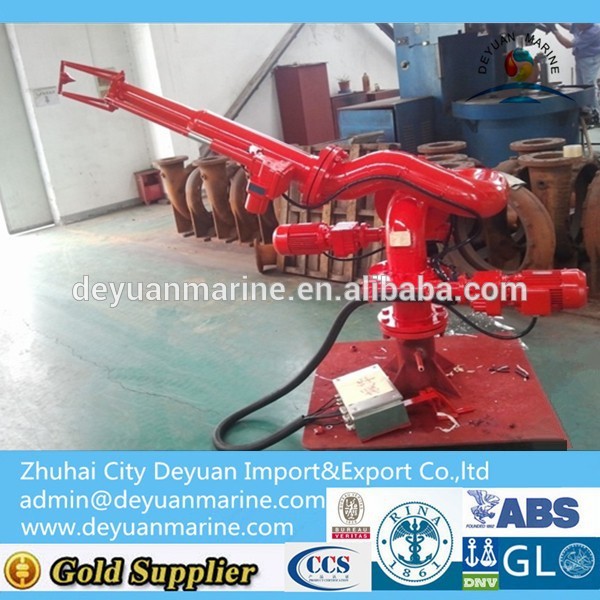

Remote control Water Fire Monitor (SS100EL)

Remote control Water Fire Monitor (SS100EL)



Remote control Water Fire Monitor (SS100EL)

SS100EL Standard Design Parameters      SS100EL/F





Descriptions:    Produced on requirement

Effective capacity:   6000L/min

The max pressure:   16bar

Inlet:   Flange DN100 PN16

Outlet:   Screw thread

Optional inlet flange: DN150 / ANSI4''

Rotation range:

Horizontal:  340°

Vertical:   +85°~ -75°

Weight:  ~75Kg

Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
