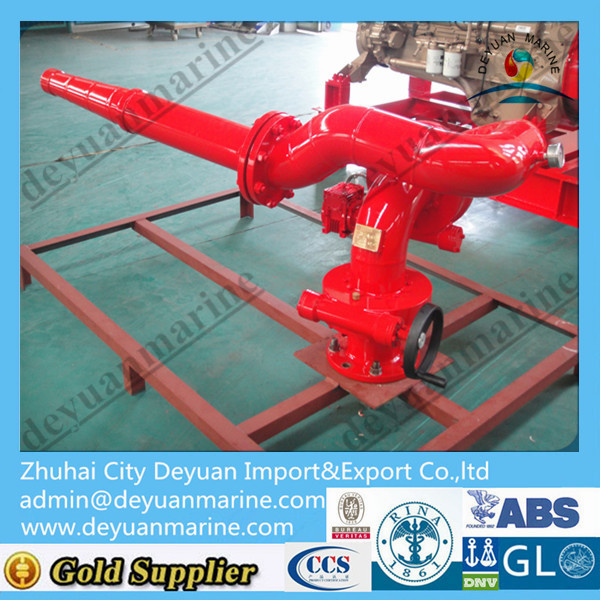

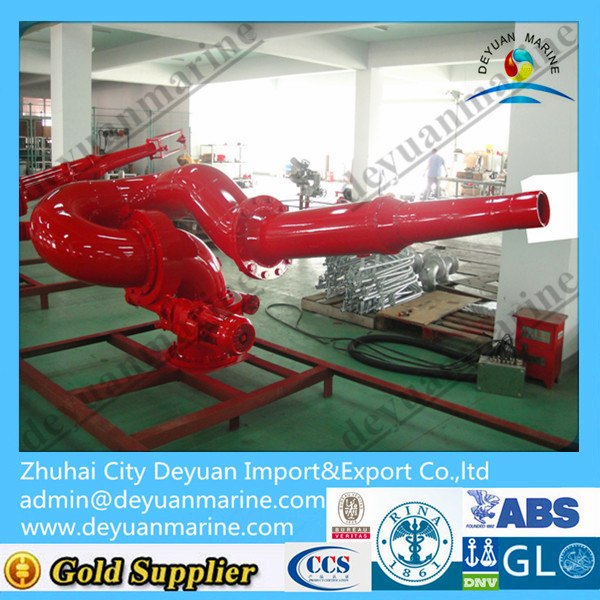

Remote control fire monitor for fire truck

Inquire Add to Basket

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • SS150EL

  • stainless steel &carbon steel& aluminum alloy

  • 16bar

  • 18000L/MIN

  • manual operation

  • water &AFFF

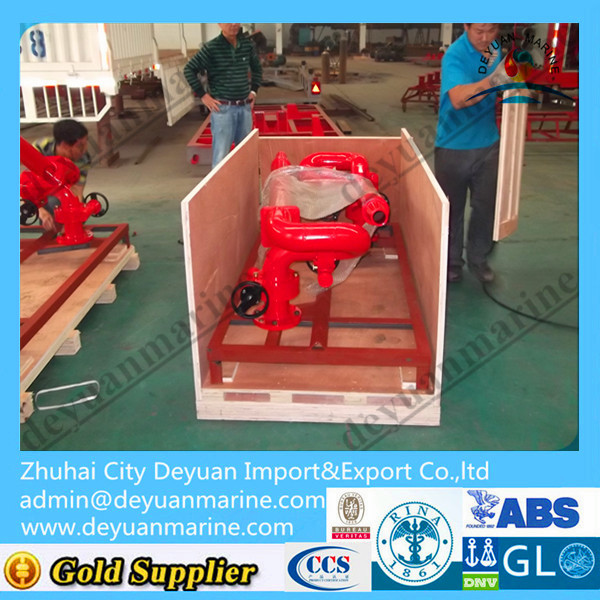

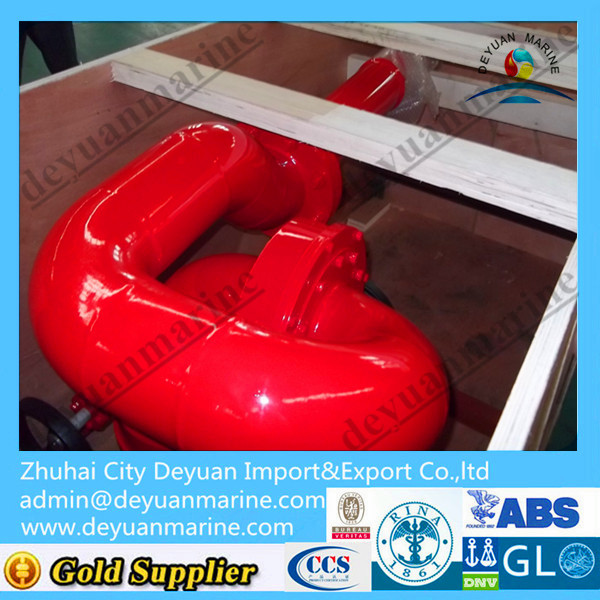

  • wooden case

  • 10-30days

1)Type of fire monitor :Electric fire fighting monitor/water fire monitor/foam fire monitor

2)Fire Monitor Capacity:61800L/MIN

3)Fire Monitor Model:SS150EL

4)Fire Monitor Material:stainless steel/carbon steel/Anti-corrosion aluminum alloy

5)Medium:Water &AFFF

*Fire Monitor capacity: 18000L/min

*fire monitor  max pressure:  16bar

*Inlet:   Flange DN150 PN16

*Outlet:   screw thread

Optional inlet flange: DN200 PN16 / ANSI2½''/ANSI3''

Rotation range:

Horizontal:  340°

Vertical:   +85°~ -75°

Weight:  ~225Kg

Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
