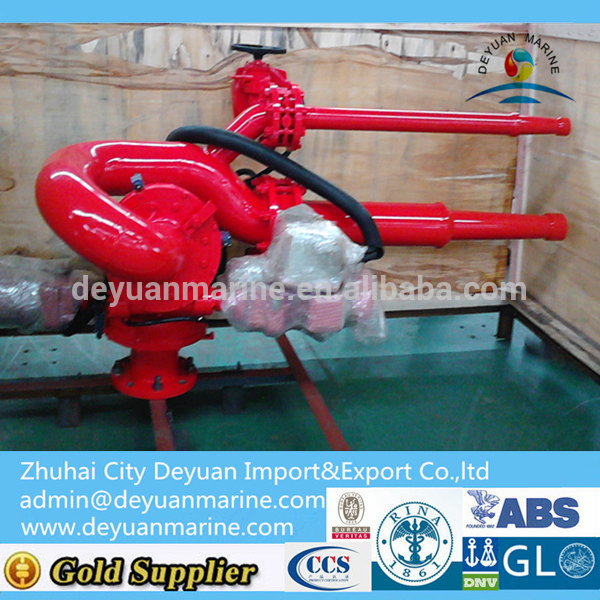

SS100 Fire Fighting Fire Monitor

Fire Monitor For Fire Fighting

Fire Monitor For Fire Fighting



1.Effective capacity:   6000L/min.

2.The max pressure:    16bar.

3.Inlet:   Flange DN100 PN16.

4.Outlet:   Square flange.

Fire Monitor For Fire Fighting





SS100 Standard Design Parameters



(SS100HL/F; SS100FHR/F; SS100HR/F)



China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,marine fire pump,foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,fire extinguishing system,Pls contact us for more specific details.



Optional inlet flange: DN150/ANSI4''



Rotation range:



Horizontal:  360° infinite



Vertical:   +85°~ -75°



Weight:  ~35Kg



Materials:



Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy



Sealing:  NBR



Pipe:   Hard aluminum alloy



Flange:   Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy



Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
