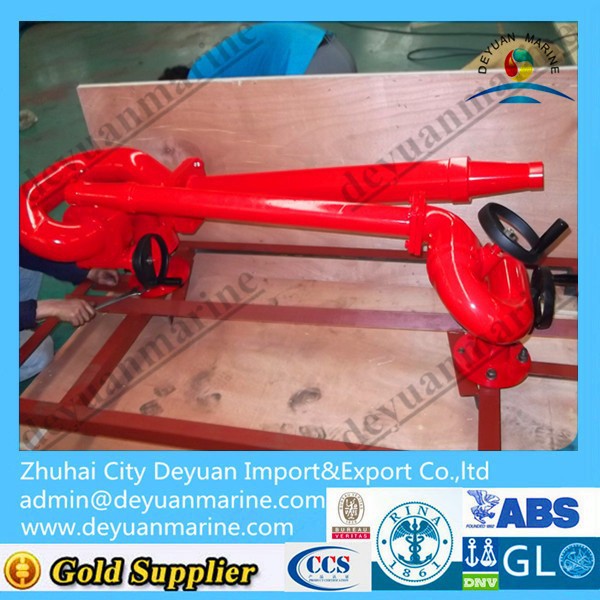

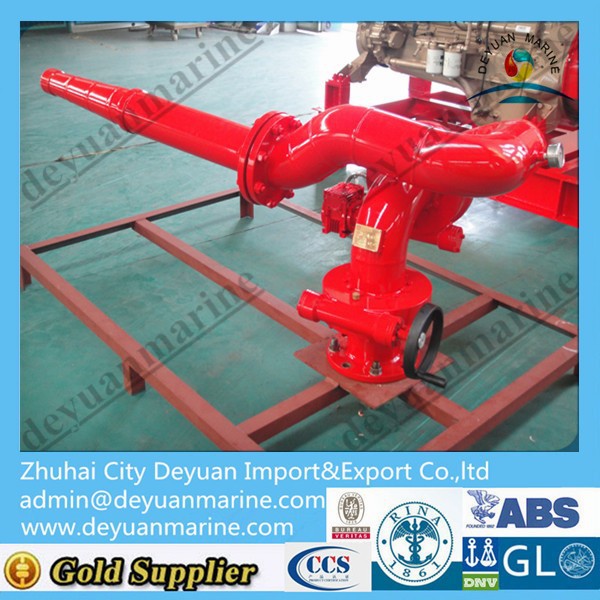

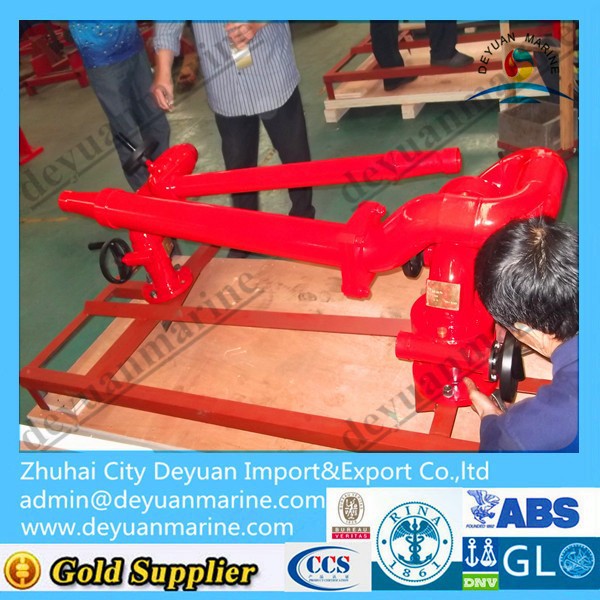

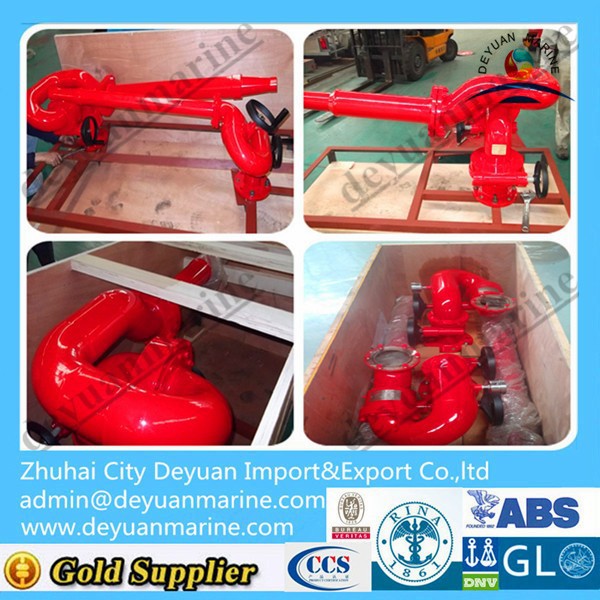

SS100 electric and remote control fire monitor

SS100 electric and remote control fire monitor



1.Effective capacity:   6000L/min.

2.The max pressure:    16bar.

3. Inlet:   Flange DN100 PN16.

4.Outlet:  Square flange.



Fire monitor for fire fighting

Descriptions:    Produced on requirement

Effective capacity:   6000L/min

The max pressure:    16bar

Inlet:   Flange DN100 PN16

Outlet:   Square flange

Optional inlet flange: DN150/ANSI4''

Rotation range:

Horizontal:  360° infinite

Vertical:   +85°~ -75°

Weight:  ~35Kg

Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Flange:   Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position
