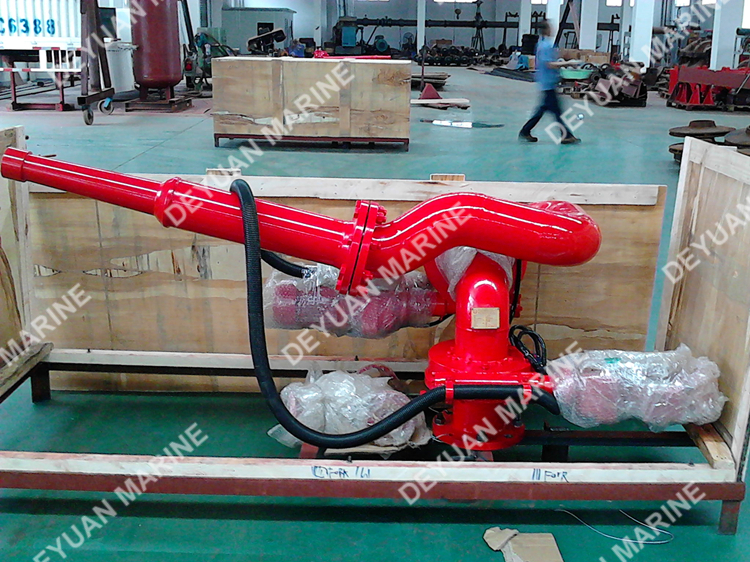

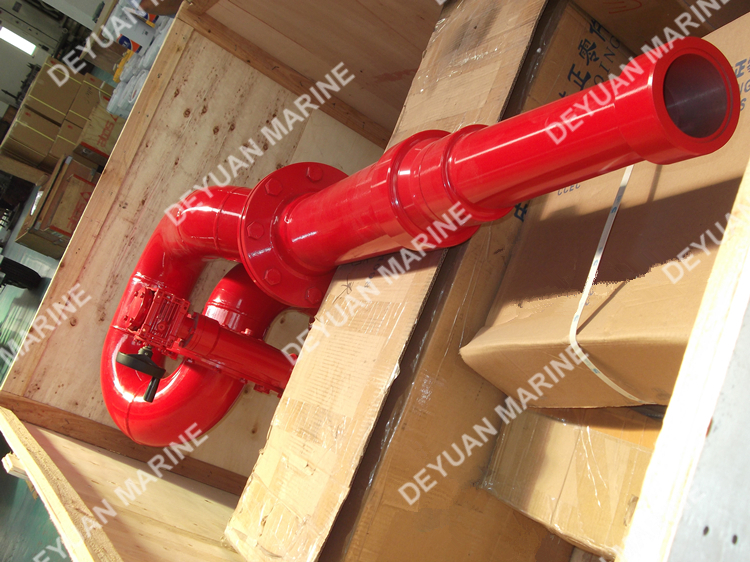

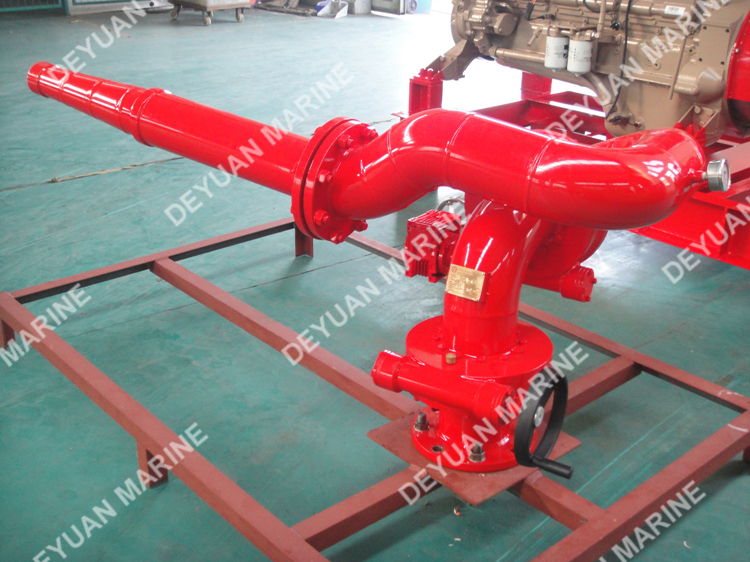

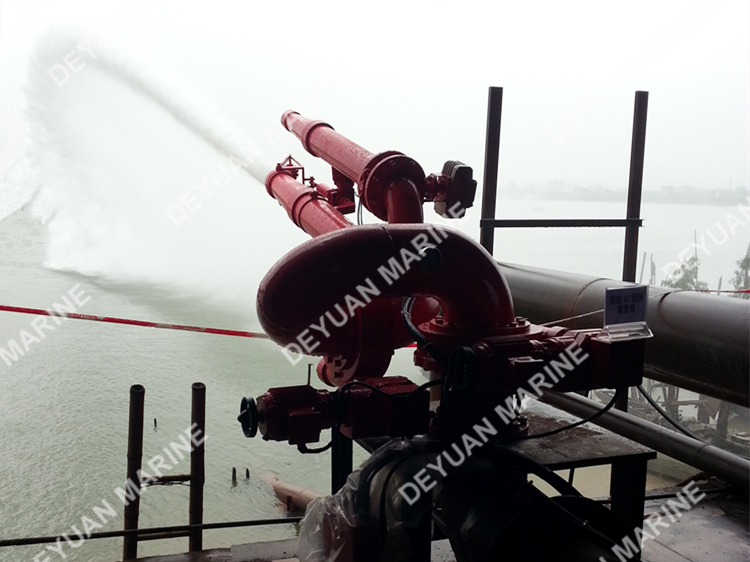

SS50FHL Fire Monitor For FiFi System
SS50FHL Fire Monitor For FiFi System
Descriptions: Produced on requirement
Effective capacity: 2000L/min; 2400L/min
The max pressure: 16bar
Inlet: Flange DN50 PN16; DN65 PN16
Outlet: Screw thread
Optional inlet Flange: DN80 PN16/ANSI2''/ANSI½''
Rotation range:
Horizontal: 360° infinite
Vertical: +85°~ -75°
Weight: ~16Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Nozzle: Copper alloy / Aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
