STC Marine sewage treatment plant

  • DEYUAN

  • China (Mainland)

  • DEYUAN

  • STC

  • Sewage treatment plant

  • CCS

  • Steel

  • Customized

  • Standard size

  • More than 10 years

  • wooden box

  • 7-30days


Product Description

The series products of sewage treatment plant in our factory, STC marine sewage treatment plant are bases on design and innovation by ourselves, meeting the requirements of the latest regulations and rules. At present, the lending technology of membrane reactor is used in the products. The membrane reactor consists of membrane component and bioreactor. The component has high effective by two steps of separator. The treated water from plant is complying

With the standard of regulation IMO MEPC. 159(55).

The serial of products has been passed the test of type approval CCS, EC, ABS, USCG and so on classification.

Main Technical Data

BOD5 for the discharged water: ≤25mg/L

COD for the discharge water : ≤125mg/L

Draining water suspended solid: ≤35mg/L

Draining water coliform : ≤100/100mL

Draining water PH value:6~8.5

Draining water chlorine residual: ≤0.5mg/L

Suitable to be applied in ships and vessels with crew 15~600 persons and offshore platforms.

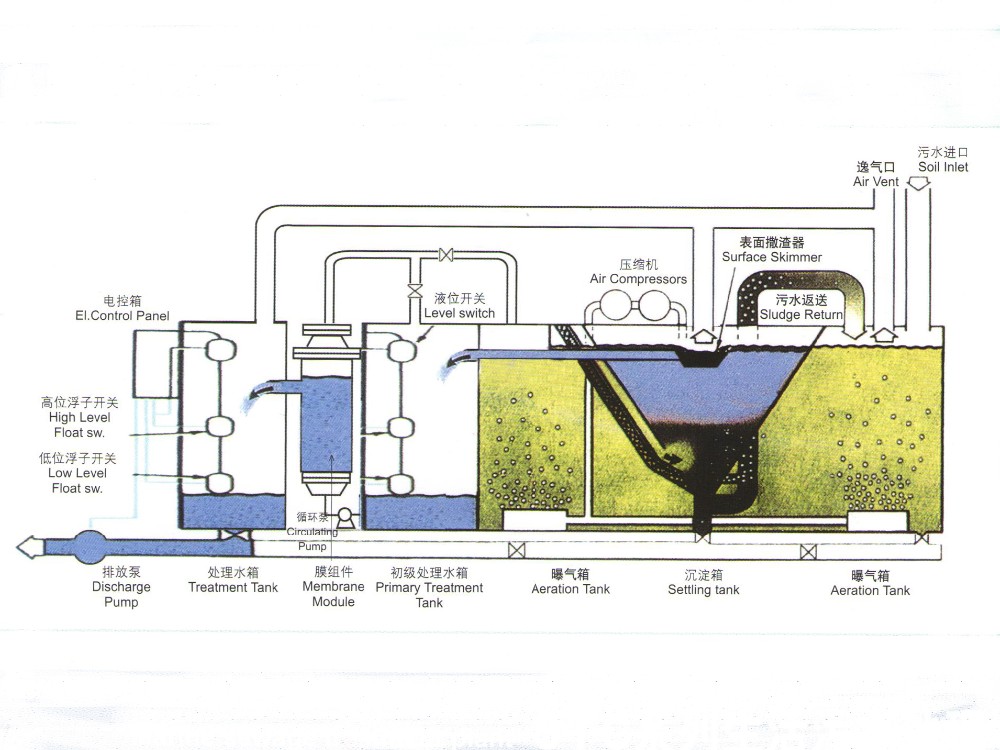

System





Dimensions

Model  Capcity
(m3/day)

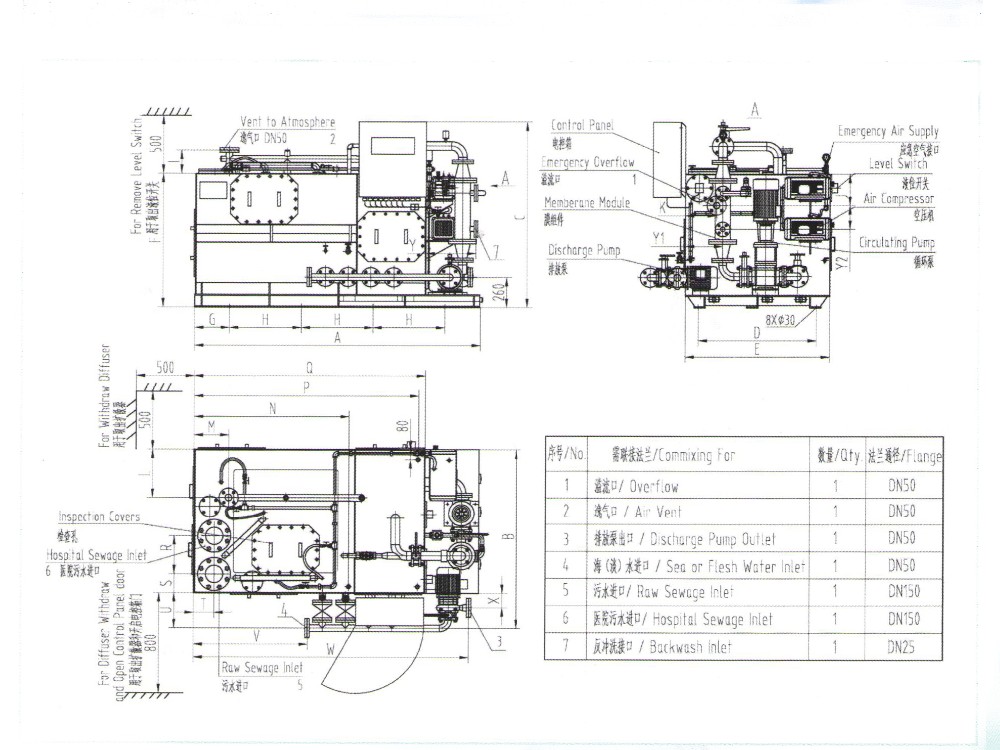

A B C D E F G H I J K L M N O P Q R S T U V W X Y Y1 Y2 Power(kw) Weight(kg)
STC1 1.05 1960 1486 1680 920 1120 1150 228 458 200 270 350 256 125 952 1284 1420 1500 190 136 125 295 478 1864 95 420 323 220 5.87 1450
STC2 2.1 2460 1552 1600 1020 1250 1152 300 620 200 270 270 419 294 1344 1554 1938 1994 330 163 178 302 985 2375 124 445 323 205 5.87 1530
STC3 3.15 2460 1552 2050 1020 1250 1600 300 620 200 270 270 419 294 1344 1554 1938 1994 330 163 178 302 985 2375 124 445 323 654 6.05 1785
STC4 4.2 2685 1696 2110 1170 1400 1600 332 664 200 270 300 406 413 1596 1784 2053 2220 350 186 193 302 1214 1214 124 430 330 620 6.05 2210



Model  Capcity
(m3/day)

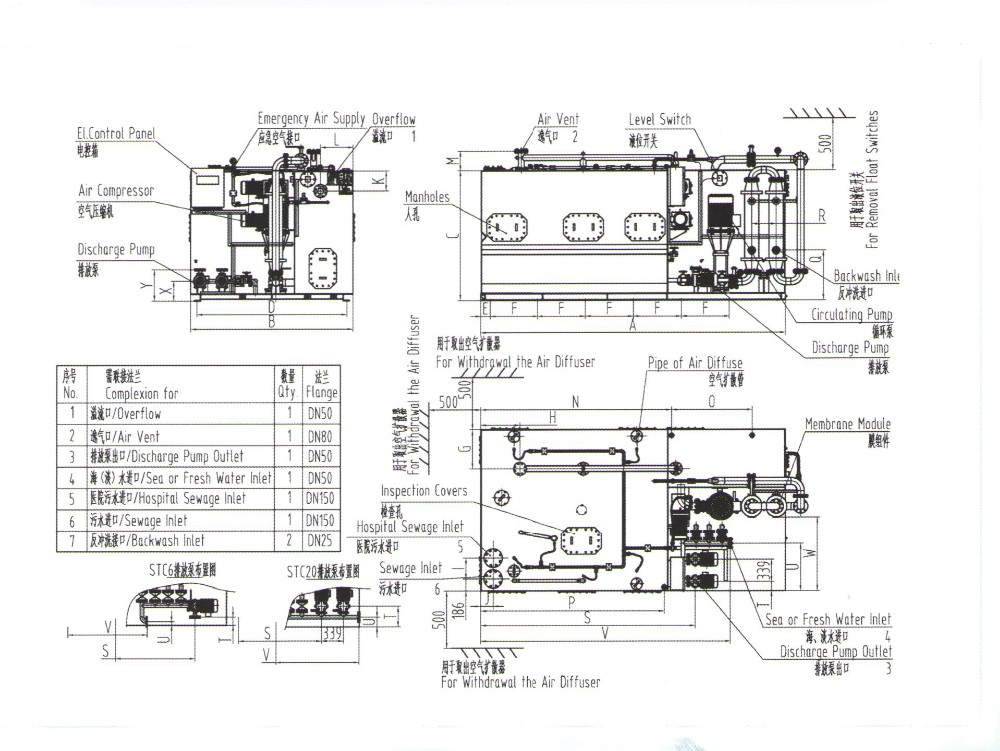

A B C D E F G H I J K L M N O P Q S T U V W X Y Power(kw) Weight(kg)
STC5 5.25 3500 1600 1600 1370 350 700 406 402 350 186 300 90 200 2106 1292 1994 680 2338 89 2900 335 700 310 460 6.6 2250
STC6 6.30 3500 1600 1700 1370 350 700 406 414 350 186 256 120 200 2100 1338 1994 680 3015 127 57 2250 686 270 270 6.6 2796
STC8 8.40 3800 1800 1700 1570 380 760 526 512 350 186 306 376 300 2350 1388 2244 680 2588 100 347 3150 710 310 460 7 2805
STC10 10.50 4100 2000 1700 1770 500 1200 606 718 350 186 306 226 300 2756 1282 2628 680 2988 100 350 3828 710 310 460 7 2771
STC15 15.75 4712 2500 2000 2300 147 740 756 612 320 192 306 500 300 2955 1243 2844 766 3319 144 728 850 1140 310 460 14.7 4850
STC20 21.00 5495 2500 2000 2300 233 770 756 864 280 186 389 712 300 3875 1160 3764 766 4904 315 5480 150 738 310 460 15.5 6420
STC30 31.50 5944 3020 2402 2818 515 400 718 618 373 188 300 180 378 4942 2884 4122 835 5214 422 587 5940 576 352 502 16.5 8180
STC40 42.00 6840 3200 2360 3000 684 456 1288 1276 280 238 240 2650 350 4890 3084 4780 835 6756 463 6358 6366 1287 352 350 16.5 1028



The measruement/size may be different between the table and goods delivered, please check with us when you order .
