Guangdong, China (Mainland)
DEYUAN MARINE
Marine CO2 Fire-extinguishing system
14.7Mpa
CO2 cylinder
wooden case
30 day

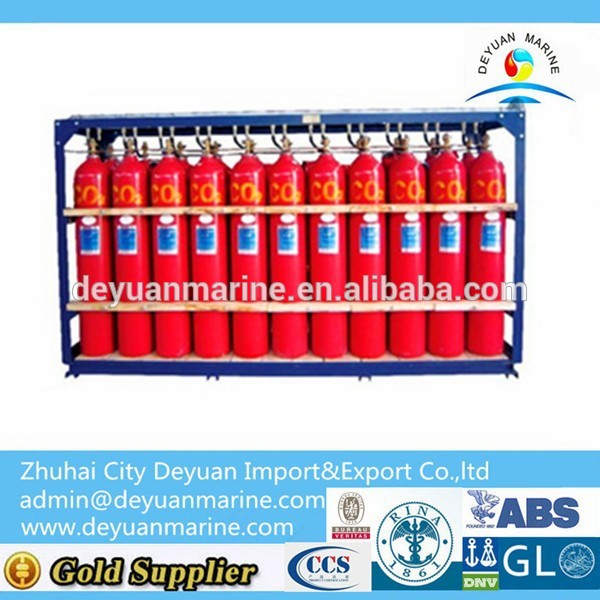

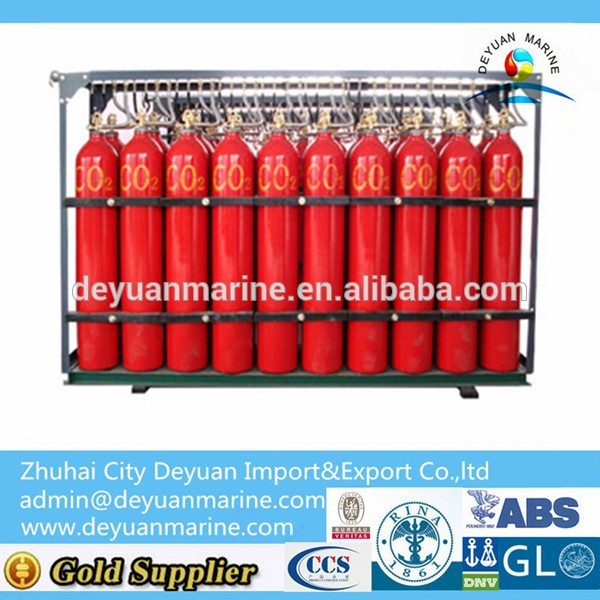

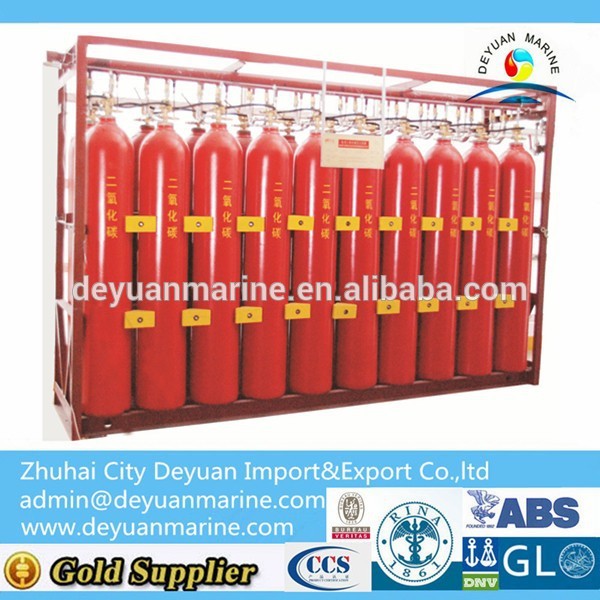

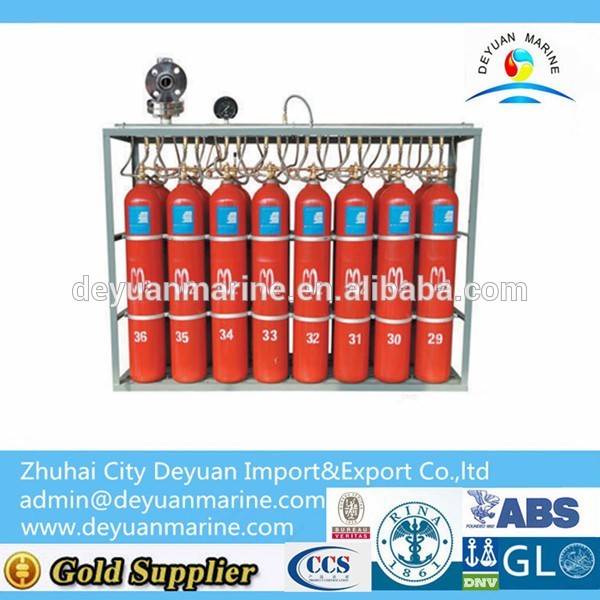

Ship CO2 Fire Extinguishing System
Ship Used CO2 Fire-extinguishing system
1.Nominal pressure:14.7Mpa.
2.Cylinder volume:CO2 cylinder.
Assembly type | Cylinder unit | Length | breadth | Height(H) | ||
40L | 68L | 40L | 68L |
| ||
Single row | 2 | 605 | 680 | 310 | 350 | 2000 |
3 | 855 | 970 | ||||
4 | 1105 | 1260 | ||||
5 | 1355 | 1550 | ||||
6 | 1605 | 1840 | ||||
7 | 1855 | 2130 | ||||
8 | 2105 | 2420 | ||||
9 | 2355 | 2710 | ||||
10 | 2605 | 3000 | ||||
11 | 2855 | 3290 | ||||
12 | 3105 | 3580 | ||||
Double Row with Single assembly | 4 | 605 | 680 | 500 | 600 | 2000 |
6 | 855 | 970 | ||||
9 | 1105 | 1260 | ||||
10 | 1355 | 1550 | ||||
12 | 1605 | 1840 | ||||
14 | 1855 | 2130 | ||||
16 | 2105 | 2420 | ||||
18 | 2355 | 2710 | ||||
20 | 2605 | 3000 | ||||
22 | 2855 | 3290 | ||||
24 | 3105 | 3580 | ||||
Double Row with Sides assembly | 4 | 605 | 680 | 580 | 680 | 2000 |
6 | 855 | 970 | ||||
9 | 1105 | 1260 | ||||
10 | 1355 | 1550 | ||||
12 | 1605 | 1840 | ||||
14 | 1855 | 2130 | ||||
16 | 2105 | 2420 | ||||
18 | 2355 | 2710 | ||||
20 | 2605 | 3000 | ||||
22 | 2855 | 3290 | ||||
24 | 3105 | 3580 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Gary
E-mail: sales9[at]deyuanmarine[dot]com
Skype: marinesales9
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: + 86 - 13798955750
Web: http://www.deyuanmarine.com
