Ship Electric Bow Thruster/ Tunnel Thruster

Availability:
  • DEYUAN


Product Description

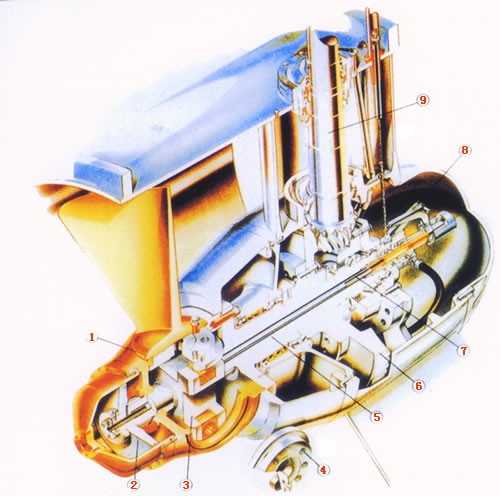

CP propeller structure of the series

9 Drive shaft assemblly with bevel gear pinion
8 Mechanical feed back
7 Oil transmission pipe
6 Bevel gear wheel
5 Propeller shaft assembly
4 Crank pin ring
3 Crosshead with sliding shoes
2 Achtuating piston
1 Blade sealing

Usual Bow Thruster(CP) construction

Main Parameters CP Bow Thruster General data



TYPE Propeller Diameter Power Frequency Input Speed To torque of zero Pitch Moment of inertia            Weight(about)kg
        mm kw max    Hz     RPm       Nm max        kgm2 Tunnel Thruster Drive Motor and start up tank
JYK11CP 1000~1200 -320 50 1480 160 1.2 1300 850
-380 60 1780 220
JYK13CP 1200~1400 -445 50 1480 340 1.9 2500 1300
-480 60 1780 470
JYK16CP 1400~1800 -590 50 1480 340 4.5 3700 2300
-800 60 1780 500
JYK20CP 1800~2100 -880 50 1480 840 11.3 6250 3300
-1200 60 1190 570
JYK24CP 2100~2600 -1580 50 980 2270 28.8 12500 4500
-1720 60 1190 3050
JYK28CP 2600~3000 -2240 50 980 3935 65 20500 5000
-2010 60 880 3300
JYK33CP 3000~3400 -3500 50 590 5600 358 31000 6000
-3500 60 590 5600





 * For input shaft ** does not include motor and starter *** input shaft speed 100% of Torque

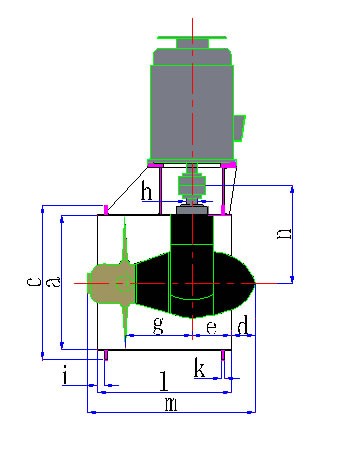

Size(mm)Diameter



TYPE d e g h i t k l m n
JYK11CP 175 340 505 70 50 15 30 1045 1283 842
JYK13CP 190 345 615 80 50 15 30 1190 1470 933
JYK16CP 260 390 730 90 50 15 50 1390 1797 1145
JYK20CP 340 420 900 110 50 22 50 1680 2195 1395
JYK24CP 310 500 1080 140 50 26 50 1990 2532 1647
JYK28CP 395 620 1210 150 60 35 60 2280 2990 1930
JYK33CP 465 730 1425 175 60 35 70 2685 3530 2280
