Guangdong, China (Mainland)
Deyuan Marine

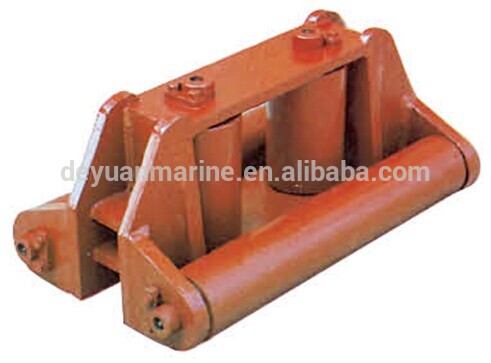

Engineering Vessel Mooring Pipe Ship Roller Fairlead
DIN type roller fairlead
Engineering Vessel Mooring Pipe Ship Roller Fairlead
Steel, cast iron, etc
GL,DNV,CCS,ABS,BV;
Standard Export package
Within 20 days
Ship Winch Roller Fairlead fairlead anchor roller Engineering Vessel Mooring Pipe Ship Roller Fairlead

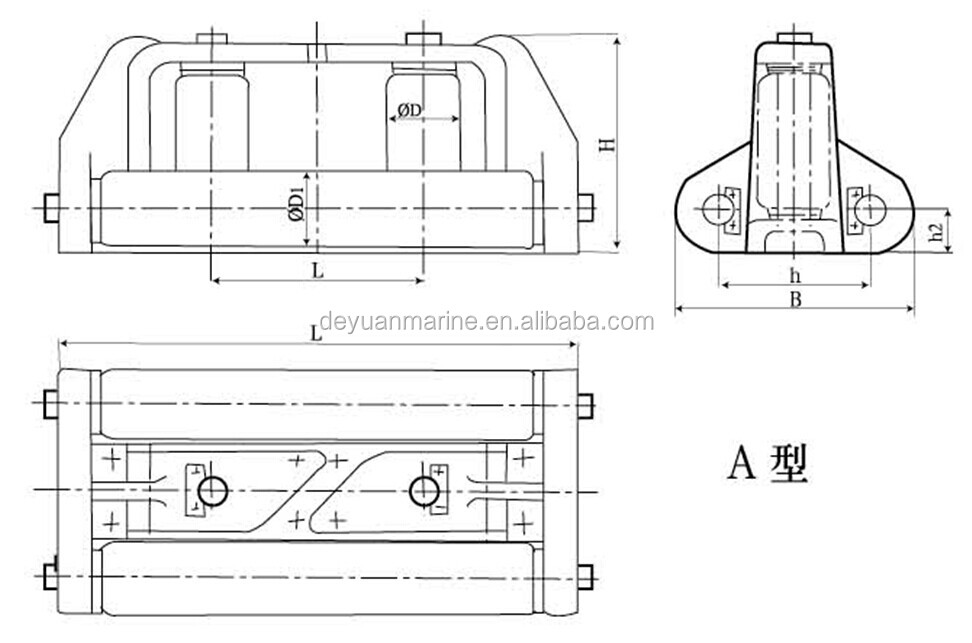

Diameter of roller (mm) | Diameter of horizontal roller D1(mm) | Diameter of wire rope φ | L | B | H | b | h1 | h2 | l | Diameter of Screw hole | ||||
Type A | Type B | |||||||||||||
100 | 85 | 19.5 | 540 | 340 | 240 | 240 | 250 | 220 | 50 | 200 | 22 | |||
150 | 120 | 26 | 760 | 460 | 340 | 340 | 340 | 320 | 65 | 290 | 26 | |||
200 | 150 | 37.5 | 980 | 580 | 430 | 440 | 430 | 410 | 80 | 380 | 32 | |||
250 | 200 | 48.5 | 1220 | 740 | 520 | 550 | 540 | 500 | 110 | 480 | 39 | |||
300 | 250 | 56 | 1460 | 900 | 620 | 675 | 650 | 590 | 135 | 580 | 39 |
