Single Arm Manual Slewing Raft Davit For Sale

  • DEYUAN

Single arm rotary boat/raft davit

*.Single arm rotary boat/raft davit(with crane).

*.Working load:21~23KN.

*.Hoisting speed:≥18m/min.

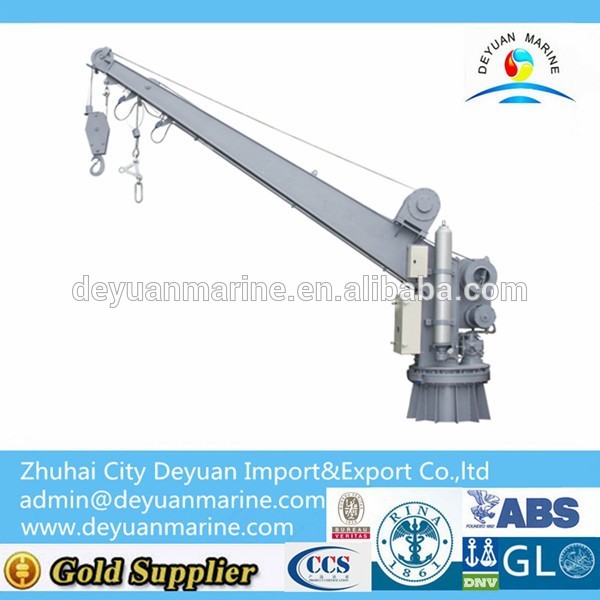

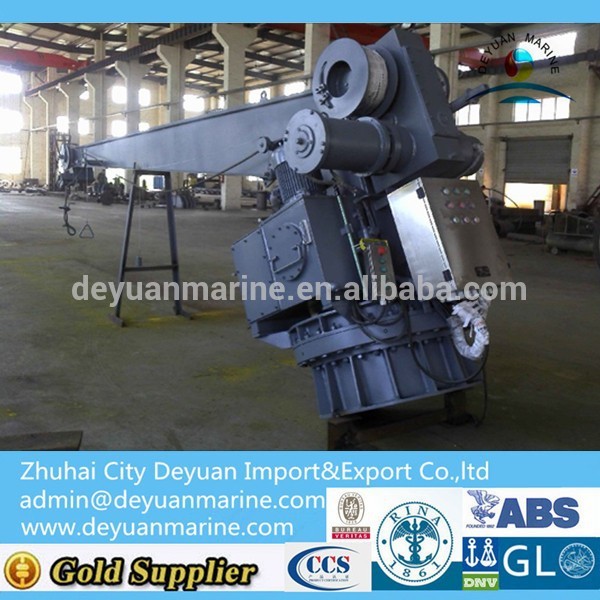

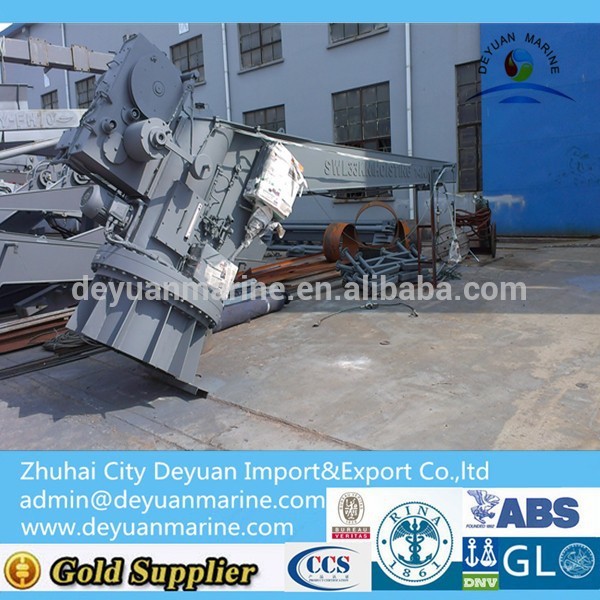

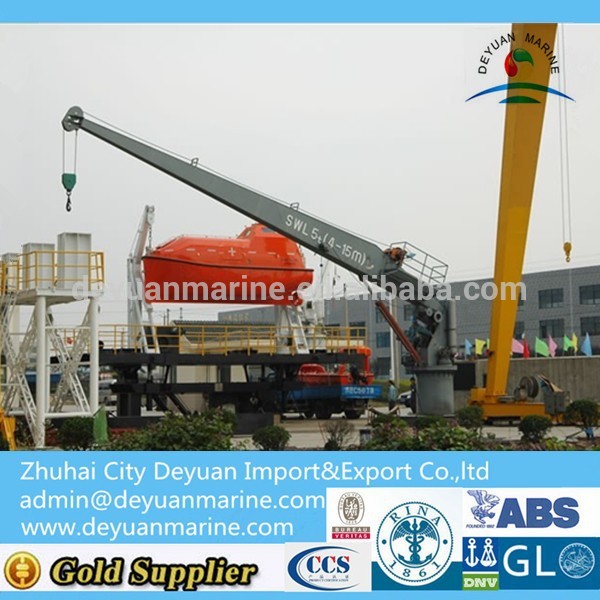

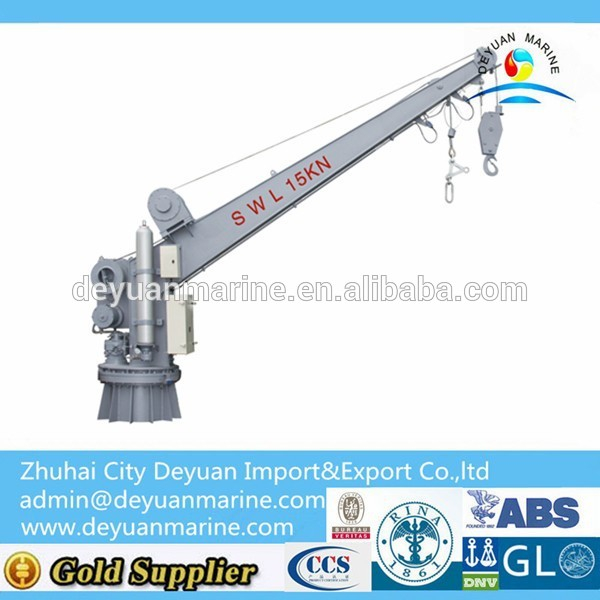

Single arm rotary boat/raft davit(with crane)

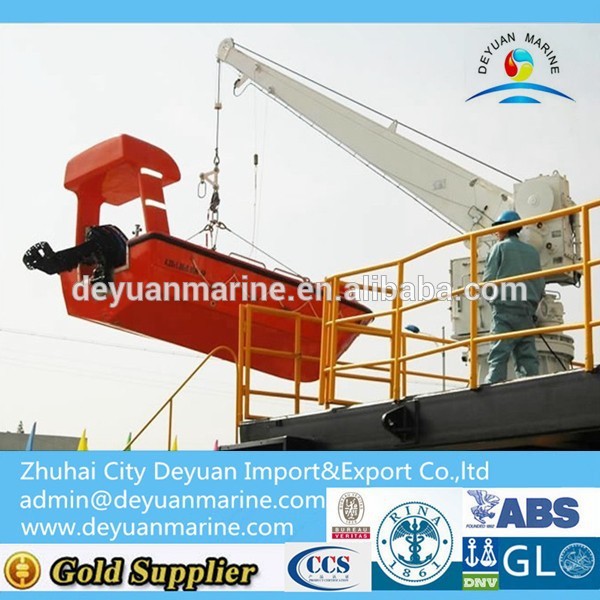

This equipment uses hydraulic drive rotary type,by its own gravity of the boat to make it down to the water,which could

make the boat slew to outboard in case of losing of the power supply.While lowering,the sailors in the boat could pull the

remote control steel rope,through the pulley around the reel.To lift the winch hammer to control the boat/raft lowering or

stop.This also could be operated by sailors on the operation deck.The winch is use of motor-driven winch gear box and gear box with centrifugal speed and manual brake function delegaed.The device is designed and

manufacturing according to the latest SOLAS standards and international standards.

The single arm rescue boat/raft lowering device and crane main technical specifications

type

Max working load

Hoisting load

Hoisting speed

Landing speed

Rope capacity of the reel

Rotation radius

SARC21

21KN

14KN

≥18m/min

40-60m/min

30m

3600-4500mm

SA23-1

23KN

14KN

3600-5400mm

SA23-2

23KN

18KN

3600-5000mm

 Crane main technical data

Max.hoisting load

Rope capacity of the reel

Maximum rotation angle

Landing speed

Rotation radius

30KN

30M

≤330°

11-15m/min

4100-5000mm

15KN

4100-7300mm

30KN

4100-5500mm
