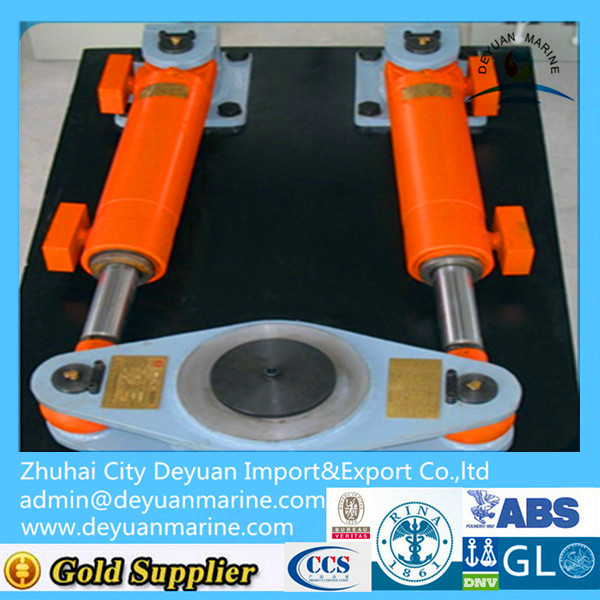

10-30KN.M Marine Hydraulic Steering Gear Tilt Cylinder Type
Marin advantages:
1.Electro-hydraulic control.
2.Compact design.
3.Suitable for normal rudder blades.
4.Pumps with variable displacement or constant delivery.
5.One-piece tiller for standard or keyless fit of rudder stock.
6.pump units mounted on and completely piped with the cylinders.
(kn.m) Nominal Torque | Turning Angle
| (s) Turning time | (Mpa) Max working oil pressure | Gear pump/motor | (mm) rudder tiller radius | (Mm) Diameter of radius | ||
|
|
|
| Type | No | Output (kw) |
|
|
10 | ±35 | ≤28/20 | 6.5 | CBN-316 | 2 | 1.1 | 240 | 75-130 |
16 | ±35 | ≤28/20 | 10.2 | CBN-316 | 2 | 1.1 | 240 | 75-130 |
20 | ±35 | ≤28/20 | 12 | CBN-320 | 2 | 2.2 | 240 | 75-130 |
25 | ±35 | ≤28/20 | 10.9 | CBN-320 | 2 | 2.2 | 290 | 75-150 |
30 | ±35 | ≤28/20 | 9.8 | CBN-320 | 2 | 3 | 290 | 75-150 |
10-30KN.M Marine Hydraulic Steering Gear Tilt Cylinder Type
Marin advantages:
1.Electro-hydraulic control.
2.Compact design.
3.Suitable for normal rudder blades.
4.Pumps with variable displacement or constant delivery.
5.One-piece tiller for standard or keyless fit of rudder stock.
6.pump units mounted on and completely piped with the cylinders.
(kn.m) Nominal Torque | Turning Angle
| (s) Turning time | (Mpa) Max working oil pressure | Gear pump/motor | (mm) rudder tiller radius | (Mm) Diameter of radius | ||
|
|
|
| Type | No | Output (kw) |
|
|
10 | ±35 | ≤28/20 | 6.5 | CBN-316 | 2 | 1.1 | 240 | 75-130 |
16 | ±35 | ≤28/20 | 10.2 | CBN-316 | 2 | 1.1 | 240 | 75-130 |
20 | ±35 | ≤28/20 | 12 | CBN-320 | 2 | 2.2 | 240 | 75-130 |
25 | ±35 | ≤28/20 | 10.9 | CBN-320 | 2 | 2.2 | 290 | 75-150 |
30 | ±35 | ≤28/20 | 9.8 | CBN-320 | 2 | 3 | 290 | 75-150 |
